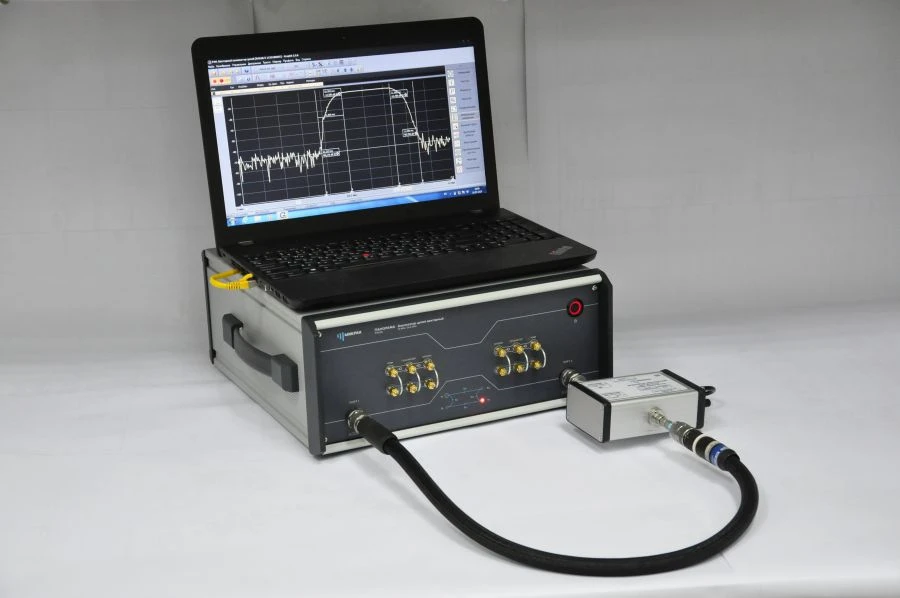

Vector circuit analyser R4226/2

Vector circuit analyser P4226/2, built on the principle of modular architecture, provide high dynamic range and maximum output power in its class, while demonstrating high speed and reliability. The use of the latest patented hardware and software solutions makes it possible to combine a wide range of microwave measurements in one device and turns the VAC of Mikran into an ideal technical solution to complex problems both in the development and serial production of microwave products. Frequency range from 10 MHz to 26.5 GHz, dynamic range over 135 dB, wide output power level setting range from -50 to +10 dBm, low trace noise 0.002 dB RMS at 1 kHz IF filter bandwidth, waveguide measurements (TRL calibration). The possibility of control via SCPI commands allows to integrate the device into automated control and measurement complexes of various complexity.
