Measuring bench for microelectronic components parameters control FT-17DT-256

Electrical Measurement Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

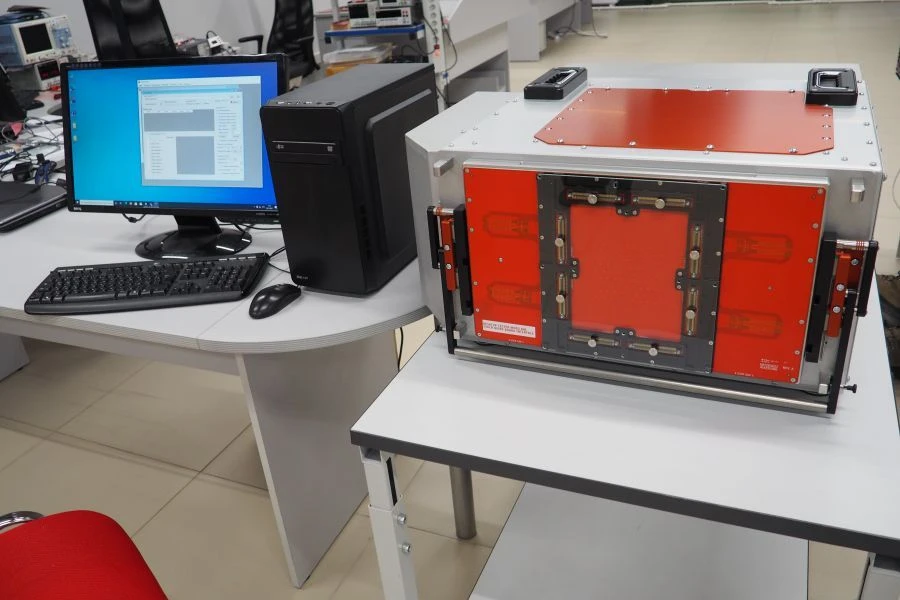

The measuring bench for control of parameters of microelectronic components FT-17DT-256, is designed for parametric, dynamic and functional control of digital and digital-analogue microcircuits with the performance of functional control up to 800Mbps.
The bench is an automated multichannel equipment. The parameters are controlled by applying signals to the pins of the chip under test, measuring the response signals and comparing them with the expected values.
Up to 4 boards of channel electronics with a total number of channels up to 256 can be installed in the stand.

Specifications

Vector memory capacity per channel 128 (256) Mb

Integration with probe dispensers, test equipment, external instruments via interfaces Armoured glass

Number of high-voltage sources-meters of static parameters 32 pc

Reproducible/measurable current by high voltage static meter 0...0.08 A

Reproducible/measurable voltage with a high-voltage static meter -4...12.5 V

Number of sources-meters of static parameters Polyvinyl chloride plasticate, halogen-free composition pc

Reproducible/measurable current by the static meter 0...0.032 A

Reproducible/measurable voltage of the static meter -1.5...6 V

Voltage setting error of the measuring power source -0.1...0.1 %

Load capacity of the measurement power supply 1.2 A

Reproducible voltage by the measuring power supply -5.5...14.5 V

Driver/comparator voltage reproduction/measurement error -0.015...0.015 V

Reproducible/measurable voltage by driver/comparator -1.5...6 V

Maximum number of simultaneously controlled microchips 96 pc

Maximum performance of functional control 800 Mbps

Maximum number of channels Polyvinyl chloride plasticate, halogen-free composition pc

Maximum number of channel electronics boards 4 pc

Overall dimensions (W×H×H) 595x696x360

Mode of operation prolonged

Weight 45

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
