Available for Import

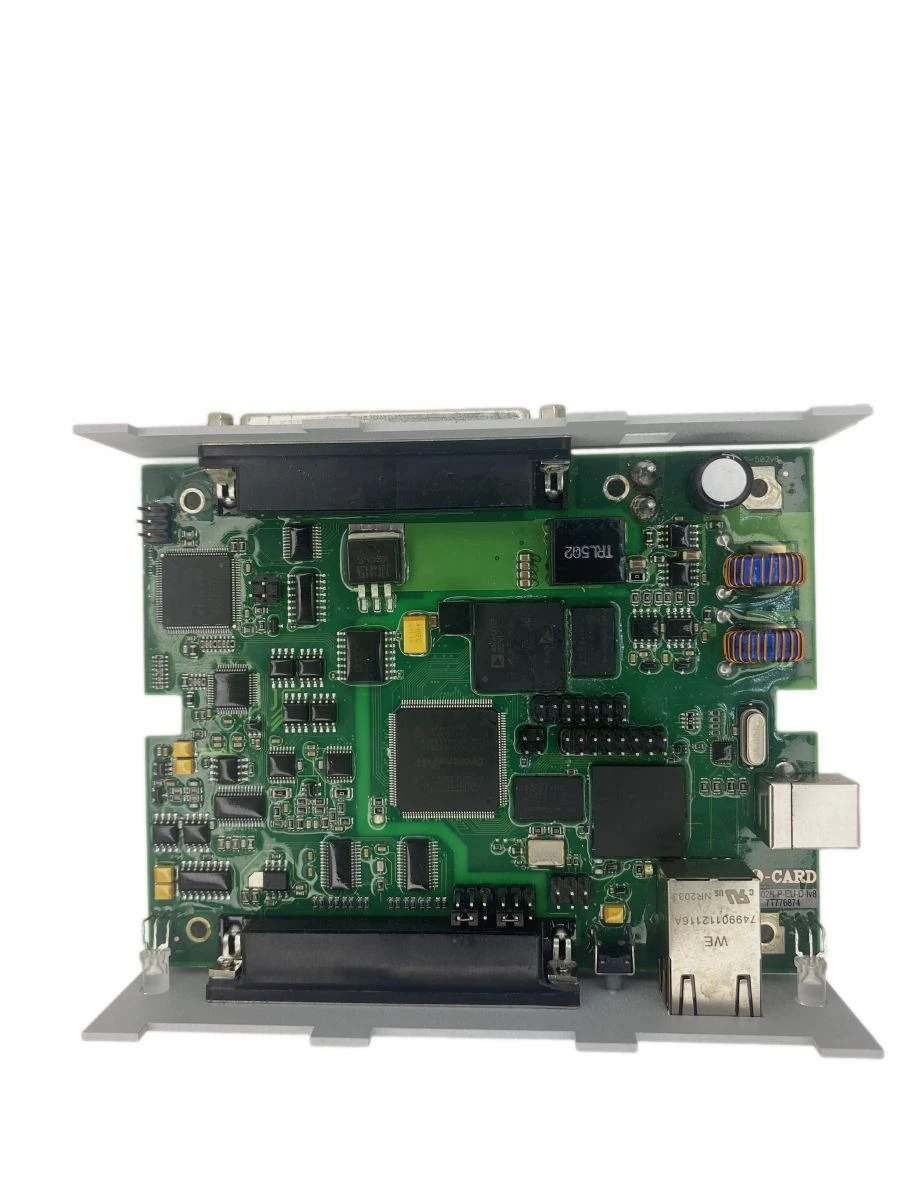

Voltage Converter Measuring Device "Set E-502-X-EU-D1-I" for Accurate Voltage Measurement
Manufacturer:
L CARD LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for measurement of direct and alternating electric current voltage, as well as for input, output and processing of analogue and digital information in measuring devices and systems based on personal computers.
Specifications
Average service life
10 year
MTBF
20000
Weight
0,15 kg
Overall dimensions
140×117×25 mm
Power consumption
7,5 W
DC supply voltage
11 to 24 V
Number of digital outputs
16 pcs
Number of digital inputs
17 pcs
DC input electrical resistance
20*10(6) ohm
In-phase noise reduction factor
70
Tolerance limits of relative basic error of ADC conversion frequency
±0,005 %
Tolerance limits of relative basic error of AC frequency reproductions
±0,005 %
Tolerance limits of relative basic error of AC voltage reproductions
from ±0.2 %
Reproduction range of AC voltage frequency
0.01 to 100
AC voltage reproduction range
0.001 to 3.5 V
Tolerance limits of the reduced basic error of DC voltage reproductions
±0,3 %
DC voltage reproduction range
-5 to +5 V
Tolerance limits of relative basic error of AC voltage measurements
from ±0.15 %
Frequency range of AC voltage
0.01 to 999
AC voltage measurement range
0.0002 to 7 V
Tolerance limits of the reduced basic error of DC voltage measurements
from ±0.05 %
DC voltage measurement range
-10 to +10 V
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
