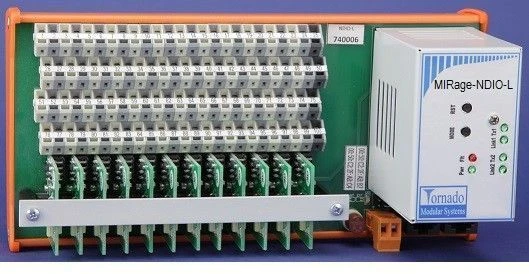

Low Voltage Discrete I/O Device MIRage-NDIO-L for Control Systems

Data Processing Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Devices MIRage-NDIO-L are designed for input and/or output of discrete signals of low voltages (up to 50 V) in the construction of distributed information and control systems. Reading of states of signals of discrete inputs and issuing of control commands to discrete outputs is performed via duplicated digital interface Ethernet 10/100 over twisted pair using ModBus protocol. The devices have 24 discrete channels (DC).

DCs, in groups of two, can be configured as incoming (DI) or outgoing (DO) (determined by the software configuration of the channel and installation of a removable matching module). Discrete input matching modules and relay discrete output matching modules are available. The DCs are galvanically isolated from each other and from the system part.

MIRage-NDIO-L devices are designed to create control systems in various industries. MIRage-NDIO-L devices use the central processor K1986BE92QI manufactured in the Russian Federation.

Specifications

Base frequency of the processor

0.1

Architecture

autonomous distributed I/O with redundant ethernet communication

External connectors

2 RJ-45; +24V power supply; spring terminals for signal cable

Form factor

din-35 rail mount

Power Type

+24V DC

Consumption current, mA

80...353

Data transfer rate

100

Type of I/O channels

input/output discrete signals up to 48v

Weight

800 year

Dimensions width

216 mm

Galvanic insulation

Individual

Power consumption

2.5 W

Data exchange protocol

Modbus UDP/TCP Slave

Polling time

Number of discrete I/O channels

24 pcs

Height

108 mm

Number of processor cores

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
