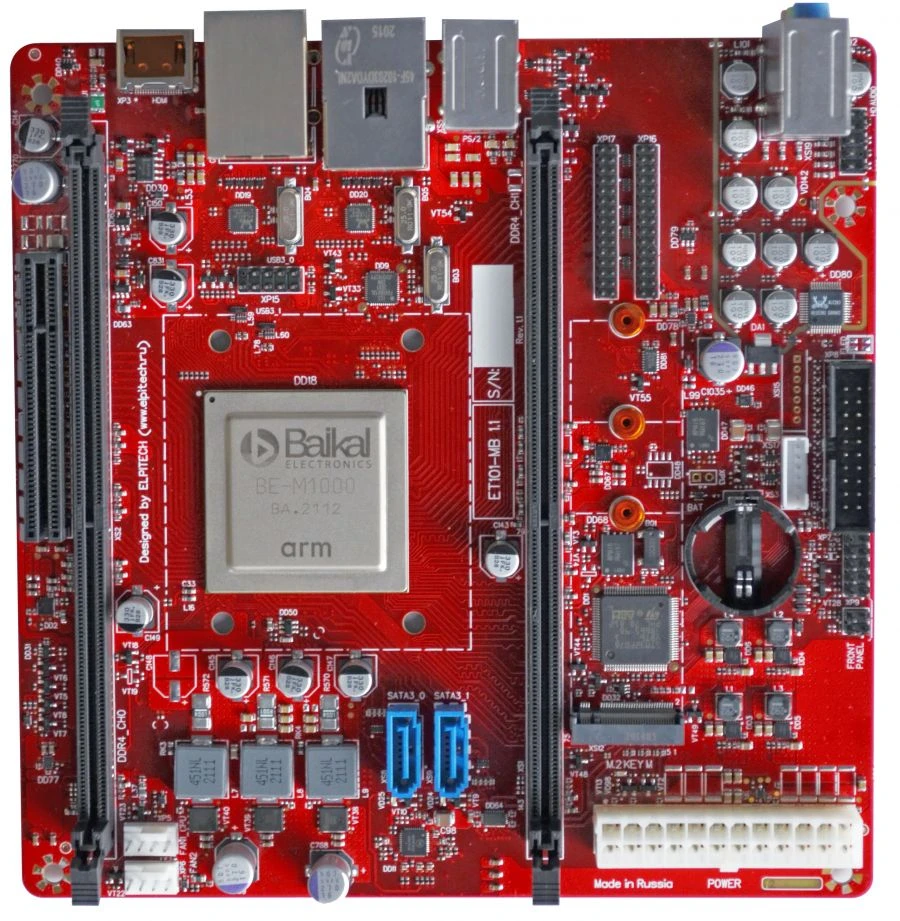

Universal Motherboard ET101-MV-1.2 with BE-M1000 Processor

Available for Import

Universal Motherboard ET101-MV-1.2 for Mini-ITX Systems - High Performance

Data Processing Devices

Manufacturer: ELPITECH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Universal motherboard running domestic processor BE-M1000 ("Baikal-M"), made in Mini-ITX form factor. The board is a high-performance basis for a wide range of domestic personal computing devices that can fully replace imported analogues. These computing devices can be used for information processing by users, in network infrastructures, ACSP, training of students, processing and transmission of information in the interests of public administration, in public institutions, including strategic orientation, in state corporations.

Specifications

Number of SATA drive slots

2 pcs

Number of NVMe drive slots

1 pcs

Number of RAM slots

2 pcs

Form factor

miniITX

Clock frequency

1.5

Number of processor cores

8 pcs

M.2 type

M.2 M key

Nutrition

ATX24

Internal connectors

2 × SATA 3 6Gb/s, 2 × 4-pin fan connectors, Battery connector, RTC 24-pin power connector

Front panel inputs/outputs

HD Audio Connector, Front Panel Connector (Buttons, LEDs), 2 × USB 2

External inputs/outputs on the rear panel

1 × HDMI out, 2 × USB 2.0, 2 × USB 3.0, 2 × RJ45 1000BASE-T, Line Out, Line In, Microphone In, 2 × PS/2, Display Port

Expansion slots

M.2 M key (PCIe 3 x 4) for NVME SSD, PCIe 3 x8 slot

Maximum RAM capacity

RAM TYPE

DDR4 2133 (including ECC)

Processor

BE-M1000

Processor architecture

ARM Cortex A57

Supported OS

Alt, RED OS, Astra Linux

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
