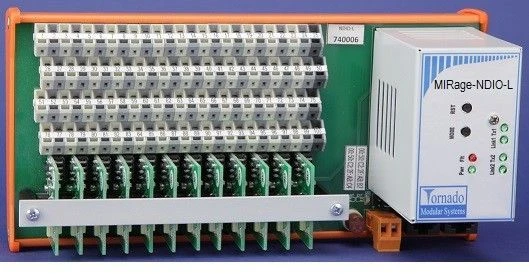

MIRage-NDIO-L Discrete Input/Output Device for Control Systems

Devices MIRage-NDIO-L are designed for input and/or output of discrete signals of low voltages (up to 50 V) in the construction of distributed information and control systems. Reading of states of signals of discrete inputs and issuing of control commands to discrete outputs is performed via duplicated digital interface Ethernet 10/100 over twisted pair using ModBus protocol. MIRage-NDIO-L devices have 24 discrete channels (DCs).

The DCs, in groups of two, can be configured by direction: to be input (DI) or output (DO) DCs. The direction types of the DCs are determined by the software configuration of the device and the installation of the appropriate types of removable matching modules. There are modules for matching digital inputs and modules for matching relay digital outputs.

The DCs are galvanically isolated from each other and from the system part. MIRage-NDIO-L devices are designed for creation of automated process control systems (APCS) in various industries.....
