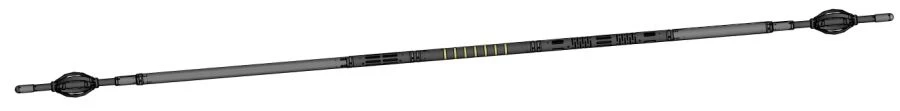

Logging Wave Acoustic Multi-Frequency Cement Meter KVARTS-60

Geophysical Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Logging wave acoustic multi-frequency cementometer KVARTS-60 is designed to identify vertical channels in wells between the string and cement stone, with an openness of at least 40 degrees, in oil and gas wells. The equipment provides registration of acoustic wave fields excited by a monopole transmitter operating in multi-frequency mode depending on the goals and objectives of the study. Registration of acoustic signal is carried out by groups of receivers, in 4 sectors, located in 90 degrees around the perimeter of the device. The field of application of the device is research by the method of wave acoustic logging of cased wells with inner diameter from 73 to 127 mm at the upper values of ambient temperature 105 C and hydrostatic pressure 60 MPa with the angle of inclination of the well not more than 40, at logging speed up to 280 m/h.

Specifications

Power supply voltage 220 V

Power consumption 30 W

Maximum hydrostatic pressure 60 MPa

Number of sectors 4 pc

Measurement range of T longitudinal waves, µs/m 120...400

Tolerance limits of basic relative errors of measurement T -3...3 %

Acoustic signal recording time 1024

Time quantization step 2

Radiation frequency 1...22

ADC digit capacity 14

Adjustment range of acoustic signal amplifiers' CG adjustment 1...16

Dynamic range of wave signal registration 84

Depth quantization step 10 cm

Transmission speed 223

Maximum logging speed 280

Operating temperature range, C 0...105 °C

Power consumption, max. 30 W

Diameter 60 mm

Length 4780 mm

Weight of downhole tool 60 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
