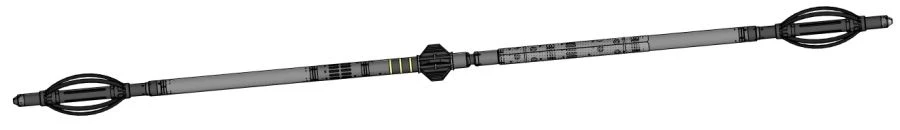

Wireline wave acoustic multi-frequency cementometer KVARTS-90

Geophysical Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Logging wave acoustic multi-frequency cementometer KVARTS-90 is designed to identify vertical channels in wells between the string and cement stone, between cement stone and rock, with an openness of at least 15 degrees, in oil and gas wells. The equipment provides registration of acoustic wave fields excited by a monopole radiator operating in multi-frequency mode depending on the goals and objectives of the study. Registration of acoustic signal is carried out by groups of receivers, in 8 sectors located at 45 degrees around the perimeter of the device.

Technical Specifications

Power consumption	30 W
Power supply voltage	220 V
Weight of downhole tool, not more	Flat grinder, Specialised grinder kg
Length	5290 mm
Diameter	Flat grinder, Specialised grinder mm
Operating temperature range	0...105 °C
Maximum hydrostatic pressure	60 MPa
Maximum logging speed	350
Transmission speed	166
Depth quantization step	10 cm
Dynamic range of wave signal registration	108
Adjustment range of acoustic signal amplifiers' CG adjustment	1...16 pc
ADC digit capacity	14 pc
Radiation frequency	1...22
Time quantization step	2
Acoustic signal recording time	1024
Tolerance limits of basic relative errors of measurement T	-3...3 %
Measurement range of T longitudinal waves, µs/m	120...660

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
