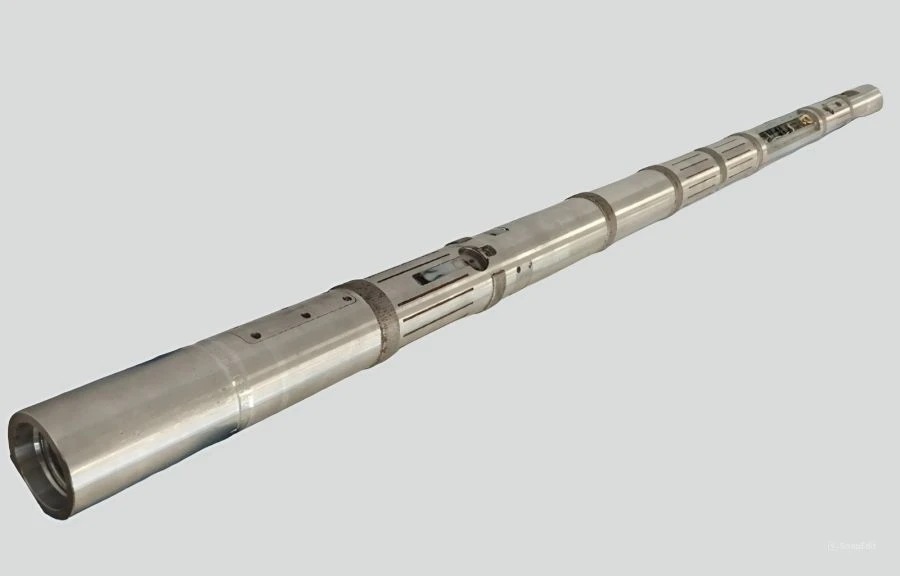

Resistivimetry module 95

Geophysical Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Resistivimeter 95 is designed to determine the volumetric resistance of the environment during drilling operations as part of a telemetry system. The principle of operation of resistivimeter is based on excitation of electromagnetic field in the environment with subsequent measurement of attenuation of amplitude and phase shift of electromagnetic wave in receiving antennas. The volumetric resistance of the medium is calculated from the measurement results. Measurements of rock conductivity are made at frequencies of 2 MHz and 400 kHz. The resistivimeter is powered by a telesystem with a nominal voltage of 36V.

Specifications

Power supply voltage NZ-150-14,5 V

Maximum tensile load as part of a telesystem 15 t

Maximum compression load as part of the telesystem 10 t

Maximum pressure in the telesystem component 100 MPa

Operating temperature range -30...125 °C

Mass as part of the telematics system 150 kg

Full length with protective plugs 3582 mm

Length along the hull as part of the telesystem 3010 mm

Diameter across the translators 102 mm

Body diameter with hardbanding 100 mm

Body diameter excluding hardbanding 95 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
