Available for Import

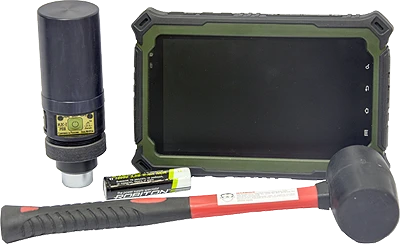

Pile Length Meter "IDS-2"
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The pile length meter "IDS-2" is designed for:
- determination of pile length and localisation of defects (deformation of pile cross-section profile, cracks) in the pile;
- determining the depth of the foundation footing;
- use as a high-frequency two-channel seismic station with an independent synchronisation channel;
- use as a sonar.
- determination of pile length and localisation of defects (deformation of pile cross-section profile, cracks) in the pile;
- determining the depth of the foundation footing;
- use as a high-frequency two-channel seismic station with an independent synchronisation channel;
- use as a sonar.
Specifications
Power consumption
4.8 W
Power supply voltage
B1/B8 2100/900 MHz V
Length of measured piles
1...25 m
Number of channels
2 pc
Number of surface wave recorders
1...4 pc
Control and data acquisition
tablet computer IP67. pc
Maximum distance of recorders from the PC
100 m
Power supply (replaceable Li-Ion battery)
3.4
Continuous operation time of the recorder, not less than
17
Tablet computer continuous operation time, not less than
16
Nonlinear distortion coefficient of the recorder, not more
0.01 %
Instantaneous dynamic range, not less than
110
In-phase signal suppression coefficient, not less
100
Attenuation of filter at Nyquist frequency, not less than
120
Quantization frequency
1...32
Weight of the set of 4 recorders
5 kg
Tare weight
1.2 kg
Weight of tablet computer set
1.3 kg
Weight of recorder with battery
0.28 kg
Overall dimensions of the set in transport container
38×30×36 cm
Overall dimensions of the recorder
50×148 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
