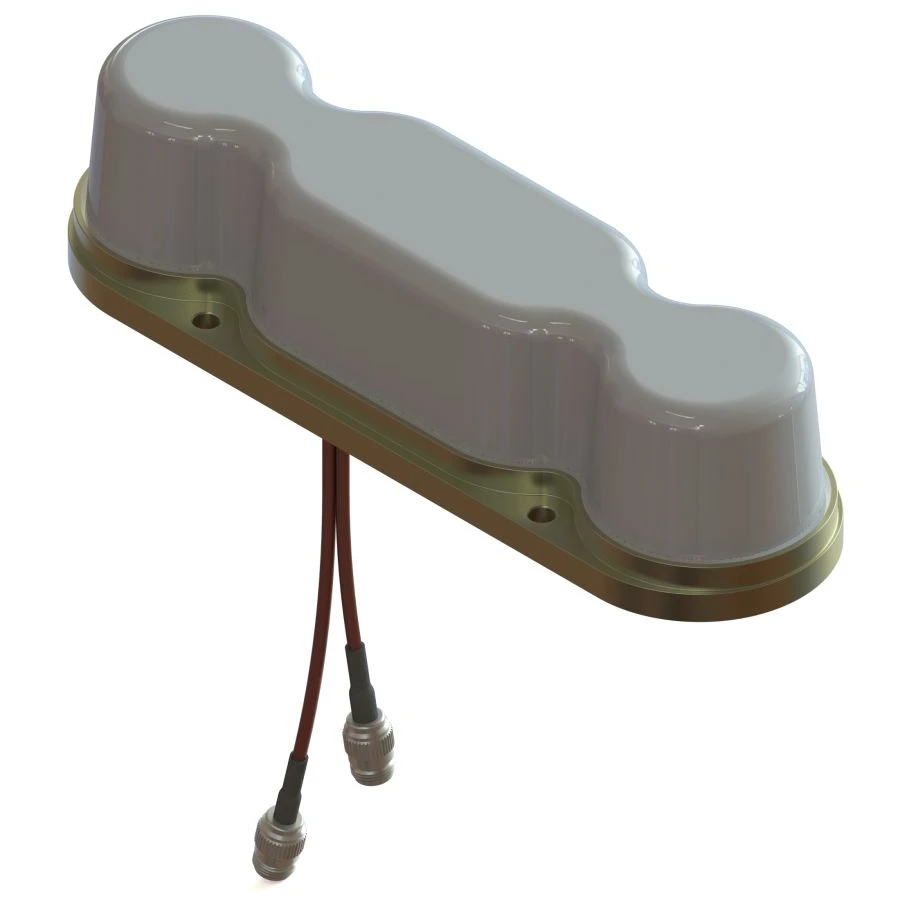

Locomotive antenna AL3/800-3400/MIMO

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Antenna locomotive AL3/800-3400/MIMO CD ALVR.464651.017 is manufactured in accordance with the requirements of technical specifications 65 7700-018-62837180-12 TU, designed to work on mobile objects of railway transport together with locomotive (transportable) radios for transmission of speech and/or data, radio facilities of systems to ensure traffic safety on railway transport and in public communication networks in LTE/GSM-R/GSM900/GSM1800/UMTS/Wi-Fi/ WIMAX standards. Structurally, the antenna consists of two asymmetrical vertical vibrators to ensure operation with radio intermediaries that support MIMO technology.

Technical Specifications

Polarization	Vertical
Weight	2.6 kg
Operating wind speed	432
Connector	Two N-type sockets
Equipment	Antenna, passport, packaging
Antenna gain with respect to isotropic radiator, dBi, not less than	In frequency ranges, MHz: 760,0-800,0 - 6,4; 800,0-990,0 - 6,3; 990,0-1350,0 - 6,5; 1350,0-1600,0 - 7,2; 1600,0-2100,0 - 8,2; 2100,0-2600,0 - 9,0; 2600,0-3200,0 - 8,5; 3200,0-3400,0 - 8,0
Horizontal directional pattern	Close to circular with deviation not more than 3 dB
Wave impedance	SBVVBG ohm
Operating conditions	The antenna is designed for operation on all mobile objects of railway transportation in train radio communication networks in the following conditions: - ambient temperature from minus 50 C to plus 60 C; - relative humidity 93 % at temperature plus 2
VSWR	Not more than 1,7 in frequency ranges 800,0-990,0; 1350,0-3200,0 and not more than 2,0 in frequency range 3200,0-3400,0 MHz
Operating frequency range	760...3400
Degree of protection in operating position	IP66 according to GOST 14254-2015
Dimensions	(WxDxW) 82x340x100 mm
Maximum power	SBVVBG W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
