Available for Import

GPS-Antenna on magnet

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

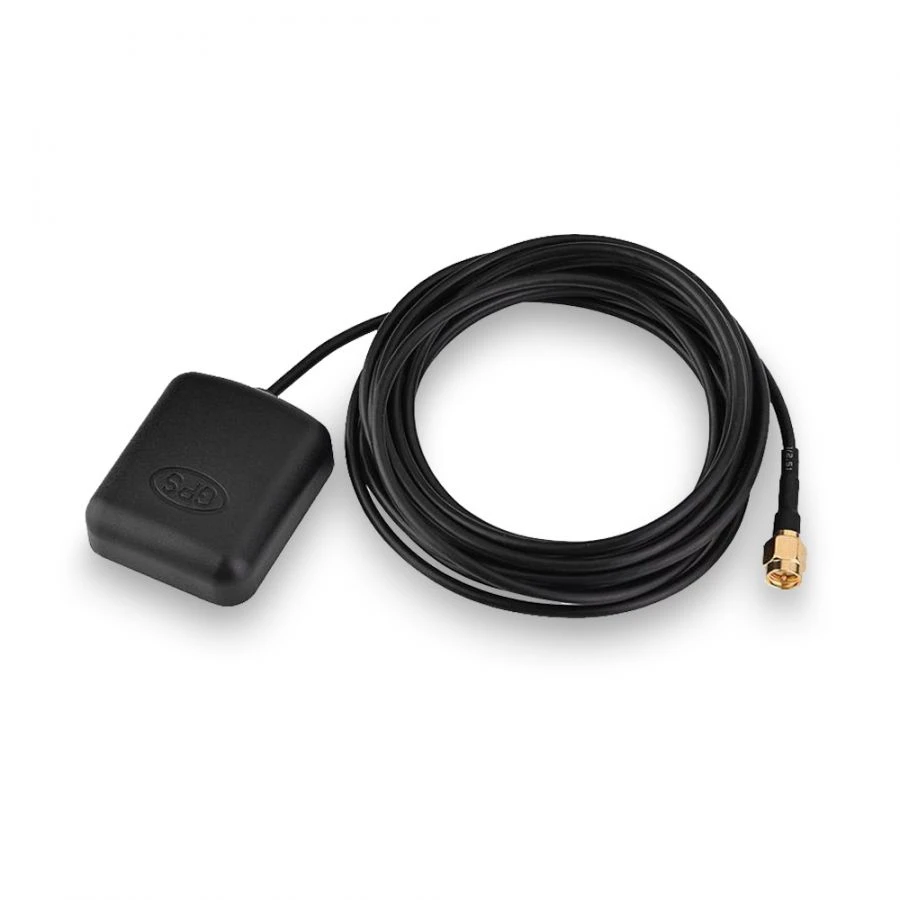

Modern GPS receivers allow you to determine the location of the object with an accuracy of up to 3 metres. In unfavourable weather conditions this parameter is significantly reduced. The use of an external active antenna is the right choice to improve such indicators as the bandwidth of the communication channel, the range of signal reception, etc. The presented antenna has small dimensions (no bigger than a matchbox). The housing reliably protects from unfavourable weather conditions. 3 metre antenna cable is equipped with SMA(male) connector. Magnetic base greatly simplifies installation. The operating frequency is 1575±3 MHz. The gain without signal attenuation in the cable is 28 dB. The supply voltage is from 3 to 5 V.

Technical Specifications

Polarization	linear
Connector	SMA-male
Weight	0.07 kg
Minimum value of the operating radio frequency range	1572
Maximum value of the operating radio frequency range	1578
Gain factor	28
Standing wave coefficient (VSWR)	2
Input impedance	SBVVBG ohm
Maximum permissible power	10 W
Maximum wind load	10
MIMO support	no
Received signals	GPS
Type of execution	Omnidirectional
Length	70 mm
Width	70 mm
Height	30 mm
Mark	Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Shipping & Payment Information

Shipping Terms

FOB: Novorossiysk, Russia
CIF: Available to major ports worldwide
EXW: Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Production lead time: 30-90 days (depending on order size)

Payment Methods

Letter of Credit (L/C)
Wire Transfer (T/T)
Escrow Services

Order Minimums

We work with orders starting from 1 container
You can mix different products in one container
Volume discounts available for larger orders

Customs & Documentation Support

We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.

Contact Our Import Specialists

WhatsApp (Recommended)

For fastest response and immediate assistance with pricing, availability, and ordering.

+971 58 657 4796

Email

For detailed inquiries, documentation requests, and formal communications.

Send Email Inquiry info@tonzar.com

Request Call Back

Schedule a consultation with our import specialists at your convenience.

Business Hours

We're available to assist you during the following hours:

Monday - Friday: 9:00 AM - 6:00 PM (GMT+4)
Saturday: 10:00 AM - 2:00 PM (GMT+4)
Sunday: Closed

Our WhatsApp support is available outside business hours for urgent inquiries.
