Available for Import

Broadband sector antenna with 18 dB gain2G/3G/4G KP18-1700/2700

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

18dB 2G/3G/4G MIMO KAA18-1700/2700 Broadband Antenna with 18 dB Gain

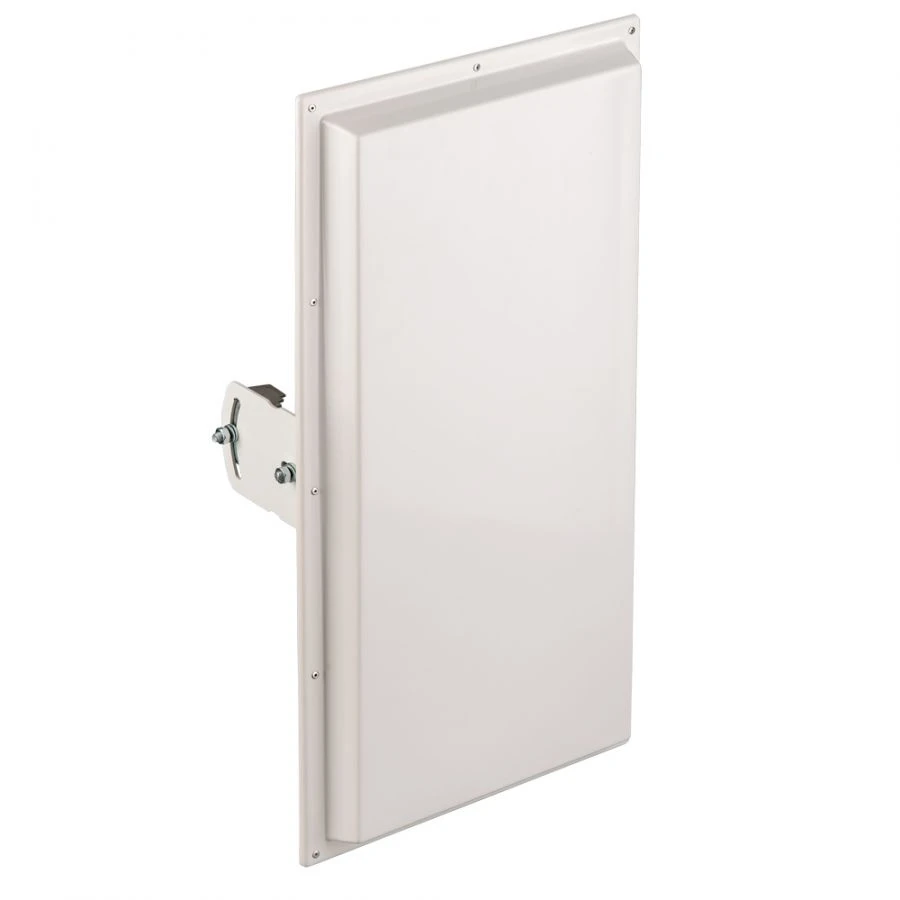

Panel antenna KP18-1700/2700 is designed for use with 3G/4G/YOTA modems, GSM/3G repeaters in the range of 1700-2700 MHz.
The antenna housing is made of ABS plastic, resistant to UV radiation and precipitation. The antenna input has a DC short circuit between the external and internal conductors, which reduces the probability of static electricity accumulation at the input of active equipment, reducing the probability of failure from static electricity, and makes the use of lightning arrester unnecessary. The antenna mount is designed to be mounted on a 32-40mm diameter vertical pipe and allows for angle adjustment.

Technical Specifications

Polarization	Vertical
Connector	F- female, N- female
Weight	2 kg
Minimum value of the operating radio frequency range	1700
Maximum value of the operating radio frequency range	2700
Gain factor	15...18
Standing wave coefficient (VSWR)	1.8
Input impedance	SBVVBG ohm
Maximum permissible power	10 W
Maximum wind load	108
MIMO support	no
Received signals	UMTS-2100
Type of execution	panel
Length	485 mm
Width	270 mm
Height	85 mm
Mark	Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
