Broadband panel antenna 4G/3G/2G KP20-1700/2700 (17-20 dB)

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Directional Panel Antenna 20 dB 3G KP20-2050 Directional Panel Antenna 8 dB LTE450 MIMO KAA8-450

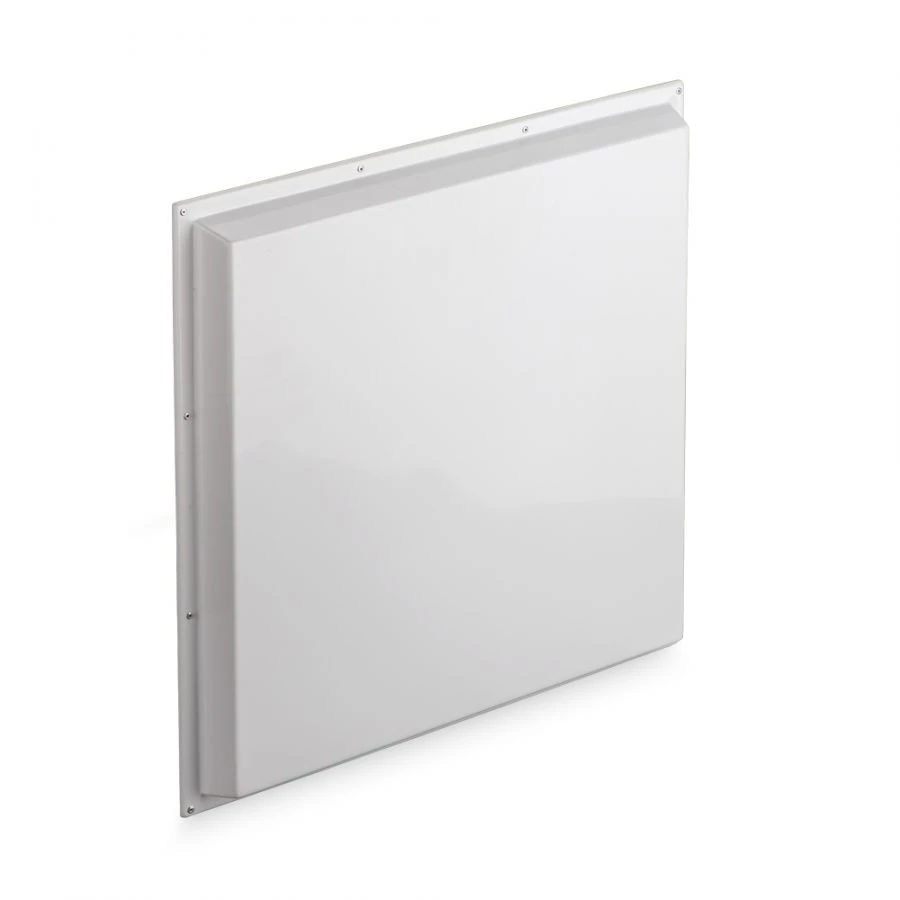

Panel antenna KP20-1700/2700 is designed for use in conjunction with 3G/4G/YOTA modems, GSM/3G repeaters in the range of 1700-2700 MHz.
Wide range of antenna operating frequencies allows 3G/4G modems to work effectively on the borders of 4G service areas. Modem will automatically switch to 3G standard in case of 4G signal absence, and the antenna will provide it with quality signal in both bands.
The antenna housing is made of ABS plastic, resistant to UV radiation and precipitation. The antenna input has a DC short circuit between the outer and inner conductors, which reduces the probability of static electricity accumulation at the input of active equipment, reducing the probability of failure from static electricity, and makes it unnecessary to use a lightning arrester. The antenna mount is designed to be mounted on a vertical pipe with a diameter of 32-40 mm. and allows adjusting the angle of inclination..

Technical Specifications

Polarization	Vertical
Connector	F- female, N- female
Weight	3.1 kg
Minimum value of the operating radio frequency range	1700
Maximum value of the operating radio frequency range	2700
Gain factor	20
Standing wave coefficient (VSWR)	2
Input impedance	SBVVBG ohm
Maximum permissible power	10 W
Maximum wind load	108
MIMO support	no
Received signals	LTE-2600
Type of execution	panel
Length	450 mm
Width	450 mm
Height	85 mm
Mark	Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
