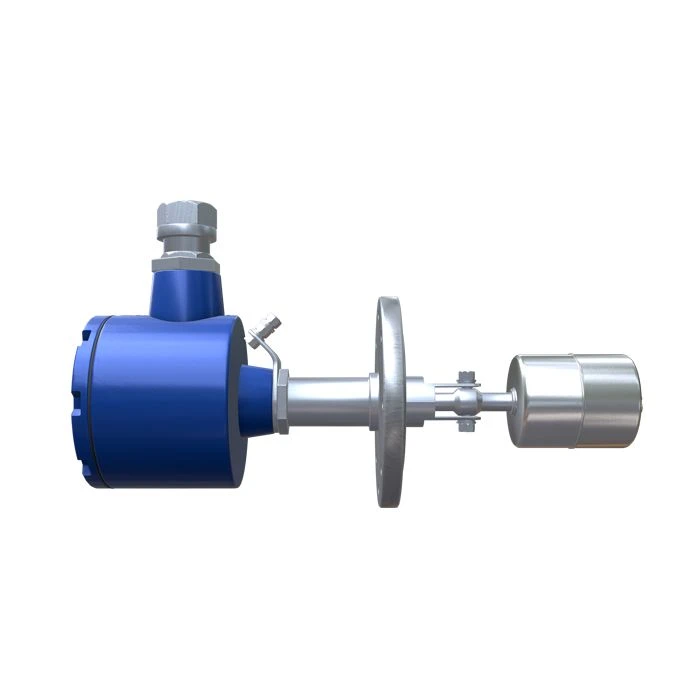

Liquid level switch SZHU-1-PG

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Horizontal float level switch SZHU-1-PG is designed for installation in tanks from the side. Universal design in which the flange connection can be changed. The modification is supplied as standard with a 51 mm diameter stainless steel float with one or two monitoring points.

The device functions in the following way: as a result of increase (decrease) of the liquid level in the tank, the float starts to move along the arc of the circle. This movement of the sensing element is possible due to its attachment to the rotational axis on the boom via a suspension. From the lowest to the highest point, the float travels 15° along the arc. SZHU-1-PG triggering occurs at the moment of reed switch closing by the float with a magnet integrated inside the rod when the maximum (minimum) level of the controlled medium is reached.

The main advantage of this modification is the absence of connection of the signalling device to the network.

Specifications

Service life B1/B8 2100/900 MHz a

Degree of protection of the outer shell IP67

Operating medium temperature -20 to +75 °C

Ambient air temperature range -55 to +75 °C

Number of control points 1...2 pc

Controlled process pressure Up to 0,63 MPa

Sensing element Float

Stand height 40 to 200 mm

Length of immersion part From 100 to 400 mm

Sealing unit Flange connection ; Socket connection, external thread ; Coupling nut, internal thread ; Special connection (by prior agreement)

Output signal Relay, dry contact type SPDT

Voltage switched by the output key of the signaling device Up to 127 V, with current not exceeding 100 mA V

Type of explosion protection Without explosion protection; 1 Exd llC T6 Gb X (flameproof enclosure); 0 Ex ia llC T6 Ga X (intrinsically safe circuit)

Material of the signaling device in contact with the working medium Stainless steel 12?18?10? (or analogue)

Housing material Aluminum alloy

Location of the device on the object Horizontal

Model Liquid level switch SZHU-1-PG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
