Liquid level switch SZHU-1

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

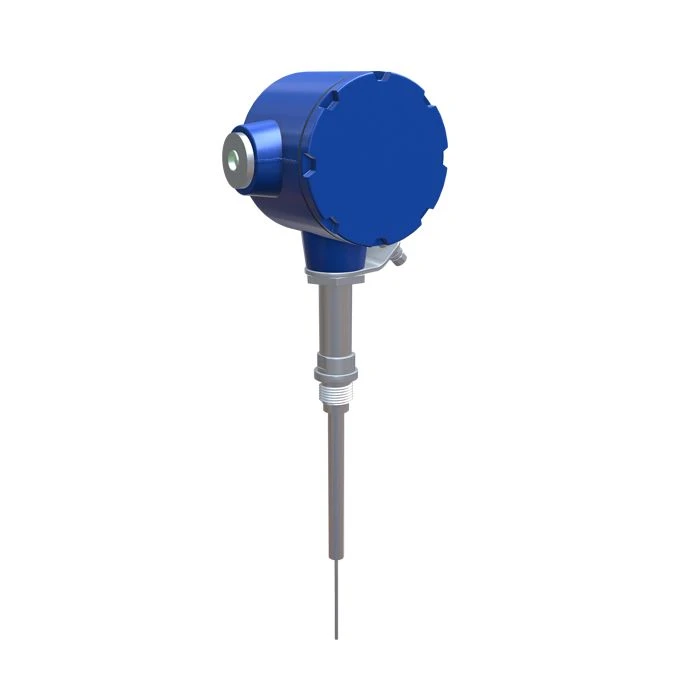

Ultrasonic liquid level switch with rod sensing element. It is used to control the level of liquid at a predetermined level. This device is produced in modifications with one and two points of control. It allows to determine two liquid levels with one instrument.
Operation of SZHU-1 is possible both in the simplest environments (water at room temperature and atmospheric pressure) and in explosive areas with overpressure at extreme temperatures.
Due to the presence of river and marine certificates for these signalling devices, they are actively used on ships of various purposes. It is also necessary to emphasise the fact that the device has no moving parts, which prevents false alarms when the vessel rolls.
There is a wide range of choice of output signals, namely: "current loop", "dry contact", NAMUR or other option on request.
The sensing element of the signalling device is made of stainless steel 12X18H10T.

Specifications

Power supply voltage 24 V

Service life B1/B8 2100/900 MHz a

Degree of protection of the outer shell IP67

Operating medium temperature -196 to +400 °C °C

Working medium pressure 0 to 35 MPa MPa

Minimum density of the medium 550

Ambient temperature range From -55 to +75 °C °C

Number of control points 1-2 pc

Length of immersion part 60-8000 mm

Stand height From 60 mm mm

Sealing unit Connector, external thread; union nut, internal thread; flanged (flange plug or blind flange); special version upon prior agreement

Sensing element Rod (rod diameter 2 mm); Curved (for version with minimum plunging part)

Location of the device on the object arbitrary

Current consumption Not more than 50mA; According to NAMUR standard not more than 3mA

Alarm control delay time 0,1 - 10 ?

Types of output signals Relay output SPDT or DPDT (dry contact) ; Two-wire system (4/20 or 8/16 or 7/14 mA) ; NAMUR (for one monitoring point) ; Special signal by prior agreement

Voltage switched by the output key of the signaling device From 14 to 28 V, with current not exceeding 100 mA V

Explosion protection Without explosion protection; 1 Ex d llC T6 Gb X (flameproof enclosure); 0 Ex ia llC T6 Ga X (intrinsically safe circuit)

Material of the signaling device in contact with the working medium Stainless steel 12Cr18Ni10T (or similar)

Material and type of enclosure Aluminium alloy (standard); Stainless steel 12Cr18Ni10T (or equivalent); Stainless steel, compact body 12Cr18Ni10T (or equivalent)

Model Liquid level switch SZHU-1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
