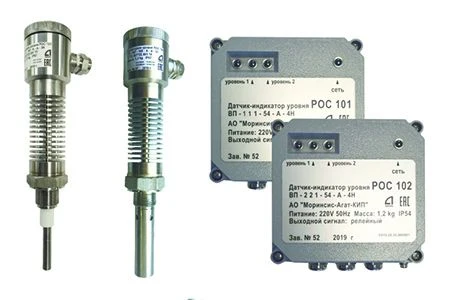

Level sensors ROS 101 (ROS 102)

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The level sensors ROS 101 (ROS 102) are designed to control the level of electrically conductive and non-electrically conductive liquids, solid (bulk) media, as well as the interface of media (water - light oil products, liquefied hydrocarbon gases - water) and other liquids with sharply different dielectric permeability. Level sensors ROS 101 (ROS 102) meet the requirements of the Rules of the Russian Maritime Register of Shipping and the Russian River Register. Level sensors ROS 101 (ROS 102) refer to capacitive devices. Types of sensor sensitive element construction: - rod (with and without insulation); - cylindrical (with and without insulation); - cable; Type of explosion protection: - primary transducers "0 Ex ia IIC T6"; - secondary converters [Ex ia] IIC; Degree of enclosure protection: - primary transmitters: IP67; - secondary converters: IP54, IP67

Technical Specifications

Power supply voltage	24 V
Service life	B1/B8 2100/900 MHz a
Degree of protection of the outer shell	54;67
Deviation of actuation level from nominal value	5 mm
Length of the immersed part of the sensing element	0.1-4 (rod PE design); up to 0.6 (cylindrical PE design); up to 22 (cable PE design) m
Operating temperature range of the controlled medium	-100...250 °C
Operating pressure of the controlled medium	Not more than 6.3 MPa
Ambient operating temperature range	-50...70 °C
Power supply parameters	24 (DC voltage); 220 (AC voltage at 50; 60; 400 Hz) V
Power consumed by the primary converter	0,7 W
Power consumed by the secondary converter	5 W
Communication line length	Up to 300 (for explosion-proof version); up to 1000 (for non-explosion-proof version) m
Assigned service life	B1/B8 2100/900 MHz a
Model	ROOS 101 (ROOS 102)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
