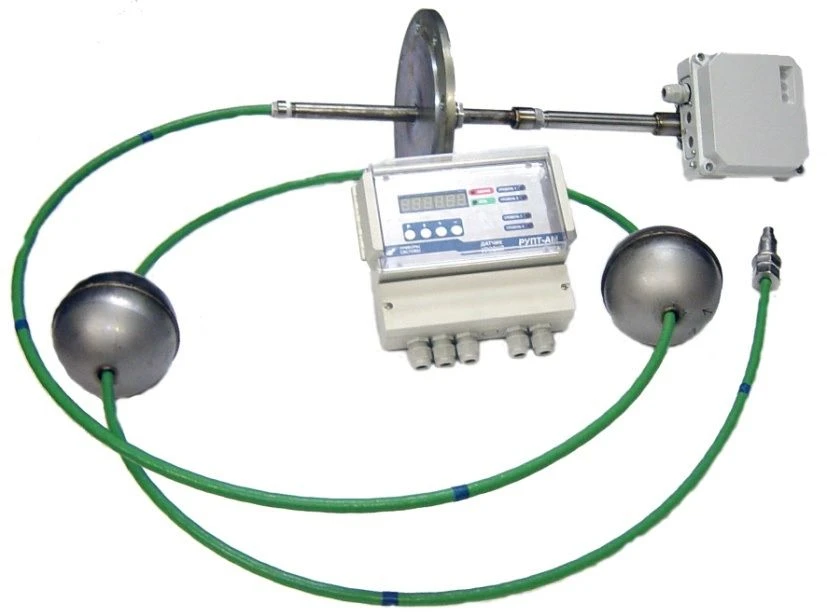

Level sensor RUPT-AM

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for: continuous conversion of level and level of interface of liquid media into a standard current signal; 0-5; 0-20; 4-20 mA;determination of temperature of liquid media (temperature determination is carried out with non-normalised accuracy);determination of volume of controlled medium in the tank with non-normalised accuracy;digital indication of one of the parameters (level in mm, level of interface of media in mm, temperature in C, volume in units specified in the graduation table) or all the listed parameters in turn;visual and relay (dry contact type) signalling of setting

Specifications

PP with rigid sensing element 1,0; 1,6; 2,0; 2,5; 3,0

PP with flexible sensing element 4,0; 6,0; 8,0; 10,0; 12,0; 16,0

For version with one float when measuring the level of a medium or the interface of two media Not more than 265 mm

For version with two floats At level measurement: not more than 690 mm; at partition measurement: not more than 390 mm

Upper measured level Not more than 300 mm

Current output signal ranges, mA 4...20

Temperature of the controlled medium -40+80C or -40+120C (depending on the sensor version)

AC supply voltage 187-242 ?

AC frequency 50+/-1 gc

DC supply voltage 12+/-1,5 and 24+/-2,0 V

Alarm error +/- 2 mm

Alarm differential 5 mm

Density of the controlled environment Not less than 0.5 g/cm3 (500 kg/m3)

Difference in density of upper and lower phases at interface control Not less than 0.1 g/cm3

PP with rigid sensing element Not more than 1,6 (4,0* - on Customer's request) MPa

PP with flexible sensing element Not more than 0,2 MPa

Primary converter Category of placement 1.1 at temperature -50-0 C

Transmitting converter Category of placement 4.2 at temperature +5+40 C

Power consumption, max. 15

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
