Lider" photo radar complexes with photo fixation

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Lider-Tandem" photo radar complexes with photo fixation

Description

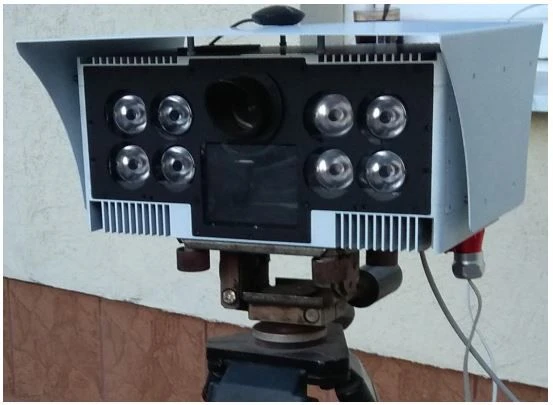

The photo radar complexes with photo fixation "Leader" are designed to measure the speed of vehicles in automatic mode in the control zone, to measure the current values of time, synchronised with the national time scale, to determine coordinates in plan.
The principle of operation of the Complexes is based on:
-measurement of vehicle speed by frequency difference between the radar signal emitted by the complex and the signal reflected from moving vehicles (Doppler effect);
-determination of coordinates in the plan and current time values based on the data received from the built-in receiver of the global navigation satellite system GLONASS/GPS;
-determination of the time of TC photofixation by the value of the national coordinated time scale UTC (SU), according to the data received from the built-in receiver of the global navigation satellite system GLONASS/GPS.
The complexes consist of a measuring module and a set for installation. Structurally, the measuring module is made in a shockproof, dustproof...

Specifications

Measurement range of vehicle speed 20 to 300

Limits of permissible absolute error of measurements of speed of vehicle movement ±2

Limits of allowable absolute error of time synchronization relative to UTC (SU) scale ±2

Boundaries of permissible error (at probability level 0,95 at geometrical factor RDOR < 3) of coordinates determination in the p ±10 m

Radiation operating frequency range From 24,05 to 24,25

Control area range Length: 10 to 50, width: 3 to 16 m

Degree of protection according to GOST 14254-2015 IP65

Power supply voltage range of modification "Leader"-C from AC network 187 to 264 V

Voltage range of supplying modification "Leader"-P from DC network 10 to 16 V

Power consumption no more than 80 W

Overall dimensions of the measuring module, modification "Leader"-C with bracket with built-in power supply unit not more than 250×450×550 mm

Overall dimensions of the measuring module modification "Leader"-P Not more than 230x380x330 mm

Weight of measuring module modification "Leader"-C with bracket with built-in power supply unit not more than 25, modification "Leader"-P not more than 15. kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
