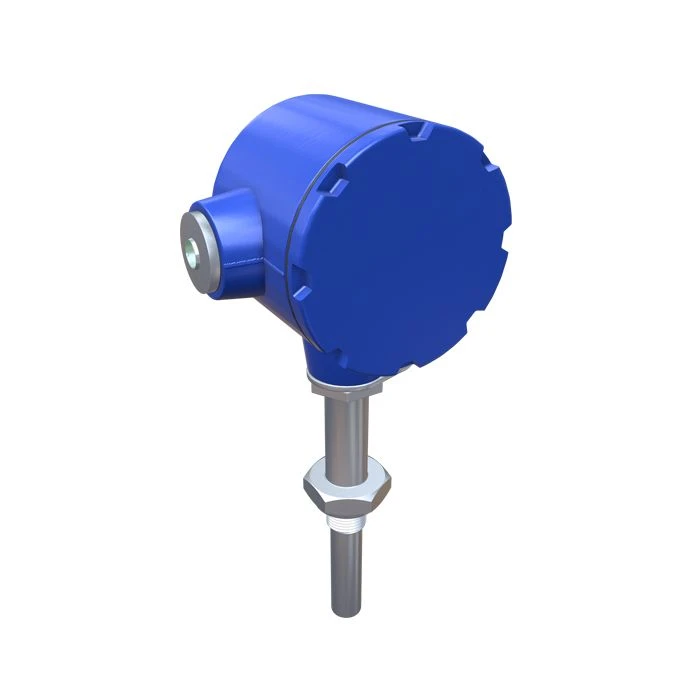

Interface detector SZHU-1-RS

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The SZHU-1-RS interface detector is capable of detecting the medium in which the sensing element is located. It has a wide range of applications, for example, you can install this device in a tank with petroleum products and determine when produced water reaches a predetermined level.
SZHU-1-RS can determine several types of liquids, and is able to act as a substitute for the level gauge with the function of separation of media, while it has a more affordable price and high reliability..

Specifications

Power supply voltage 24 V

Service life B1/B8 2100/900 MHz a

Degree of protection of the outer shell IP67

Operating medium temperature -196 to +400 °C

Working medium pressure 0 to 35 MPa

Ambient air temperature range -55 to +75 °C

Length of immersion part 40 up to 8000 mm

Stand height From 60 mm

Sealing unit Connector, male thread; Coupling nut, female thread; Flange connection; Special version by prior agreement

Sensing element Circular, embedded in the wall of the pipe with diameter 14 or 16 mm.

Location of the device on the object arbitrary

Current consumption Not more than 50 mA

Alarm control time 0,1 - 10

Types of output signals Relay output SPDT (setpoint) ; Three-wire system (4/20 mA); RS-485

Voltage switched by the output key of the signaling device From 14 to 28 V, with current not exceeding 100 mA V

Explosion protection No explosion protection; 1 Ex d llC T6 Gb X (flameproof enclosure); 0 Ex ia llC T6 Ga X (intrinsically safe circuit)

Material of the signaling device in contact with the working medium Stainless steel 12?18?10?, Chemically resistant steel 10?17?13?2?; Other type of steel by prior agreement.

Housing material Aluminum alloy (standard); Stainless steel 12?18?10? (or equivalent)

Model Interface switch SZHU-1-RS

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
