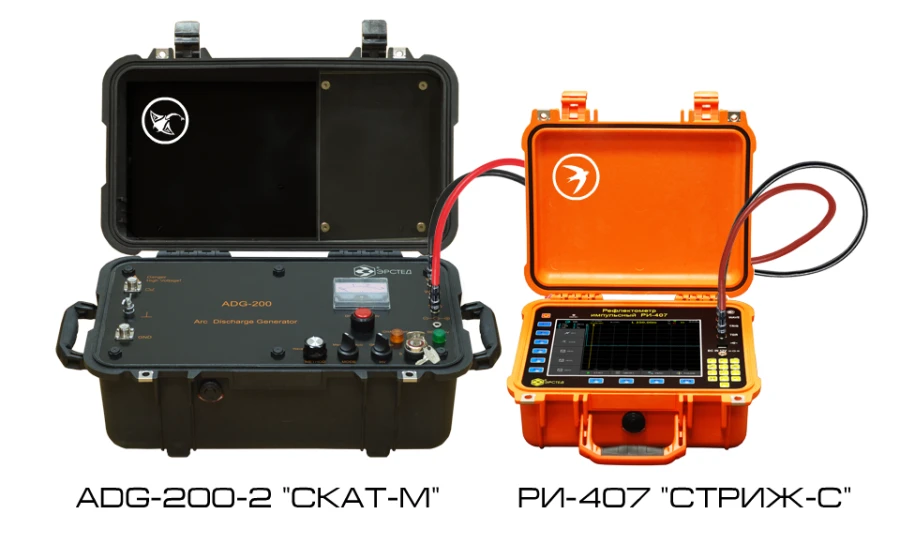

Remote localisation kit RI-407 STRIZh-S + ADG-200-2 SKAT-M

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Purpose of the set: Realisation of modern BB methods of search of damages in a light, compact complex with autonomous power supply. Preliminary localisation of both low-resistance (< 1 kOhm) and high-resistance (> 1 kOhm) CL faults by the following burn-free methods: pulse method (method of pulse reflectometry, TDR) pulse-arc method (method of reflection from short-term electric arc, ARM) method of oscillating discharge by current (wave by current, ICE).Field of application: Power cables of all types: Power cables with impregnated paper insulation in lead or aluminium sheath, Power cables with rubber insulation, Power cables with polyvinyl chloride insulation, Power cables with polyethylene insulation, Heating cables of main types: resistive type self-regulating type, etc.

Technical Specifications

Operating temperature range for ADG-200-2 generator	From -20 C to +40 C .
Dimensions on ADG-200-2	570x350x200 mm
Maximum permissible pulse voltages on all low-voltage connectors intended for connection to the OTDR, not to	On TDR connector - 60V; on WAVE connector - 120V; on TRIG connector - 20V.
Output voltage range of the ADG-200-2 generator	0 to 10 kV
Overall dimensions for RI-407 OTDR.	152x339x295 mm
Distance measurement error on RI-407 OTDR.	0.025% to 0.2% of the subrange.
Distance measurement range on RI-407 OTDR	From 0 to 256000 m (from 0 to 2560 µs).
Display for RI-407 OTDR	Colour TFT 10 (800x600 pixels).
RI-407 OTDR measurement modes	Pulse (TDR),pulse-arc (ARM),voltage wave (Decay),current wave (ICE).

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
