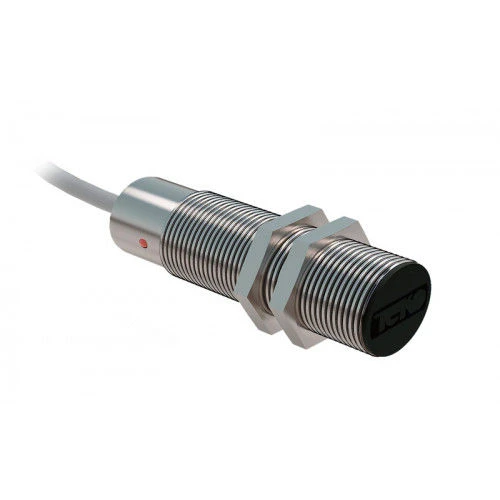

Inductive non-contact sensor ISBm A3B8-31P-4-LZ-D-VP-3K

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Inductive non-contact sensor ISBm A3B8-31P-4-LZ-D-VP-3K is designed for detection of the controlled object and contactless switching of actuators in automated devices and systems of marine vessels, having a source of constant voltage from 10 to 30V. The sensor is designed for operation in conditions of increased vibration.When any metal approaches the sensitive zone of the sensor, the threshold device is triggered and the corresponding output signal of the electronic key of the sensor is formed, which is used for switching electrical circuits and signalling.

Specifications

Contact type / Output structure PNP Closing

Voltage drop at Imax, Ud ?2,5 ?

Product length 61 mm

Diameter of threaded body M16

Nominal sensing distance 4 mm

Mounting type Built-in

Enclosure size, DxWxDl M16x1x61

Wiring diagram 3-wire

Special purpose Marine version

Working clearance 0...3.2 mm

Operating temperature range -60S...+65S

Supply voltage ripple factor ?67% Interference protected

For harsh environments Temperature range -60C...+65C

Degree of protection according to GOST 14254-96 IP68 / IP67

Comprehensive protection Got it

Light indication Got it

Connection / Connection Cable KPMPPGng(A)-HF 3x0,35 TU16.?18-114-2012; L=3m

Switching frequency, Fmax 850

Operating voltage range, Urab 10...30 V

Maximum operating current 0.25 A

Housing material LS59-1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
