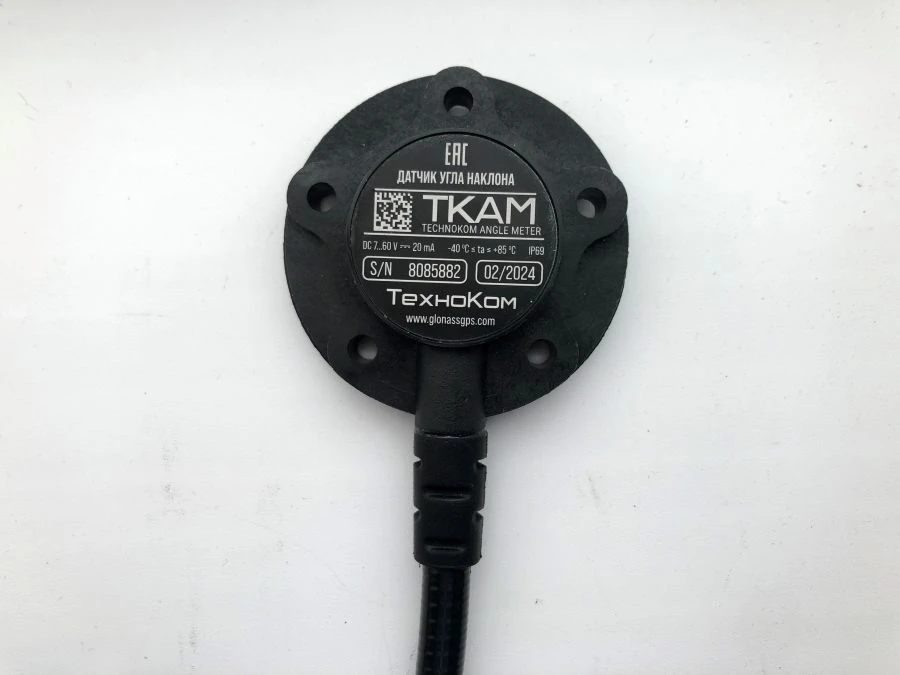

Tilt sensor TKAM

Tilt angle sensor TKAM is an electronic measuring converter designed to measure in the vertical plane the angle of inclination of the mechanism on which it is installed, converting the received data into digital form or frequency signal and transmitting them to the data acquisition device. The data are transmitted digitally via RS-485 interface in AGHIP (AutoGRAPH Hardware Interface Protocol). In addition, the sensor allows the transmission of the measured angle as a frequency-modulated pulse signal with a frequency directly proportional to the measured angle. The data acquisition device can be an on-board Autograf monitoring controller, as well as any device equipped with a digital input allowing to measure the frequency in the range of output values of the TKAM Tilt Angle Sensor.
