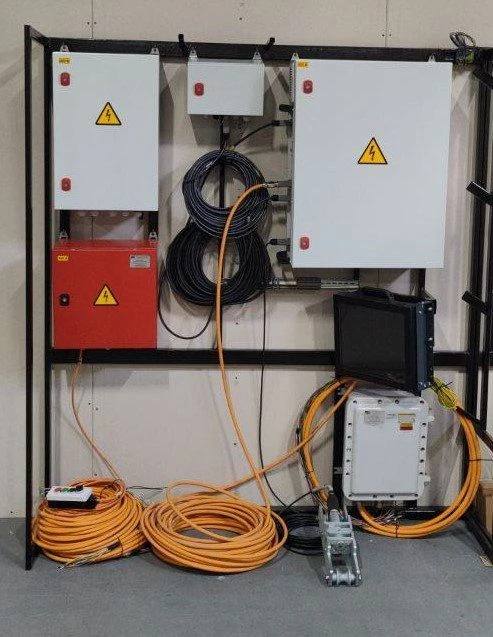

Hardware-software complex "Automatic drilling complex".

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Hardware-software complex "Automatic drilling complex".

This measurement and control devices is manufactured in Russia and is available for import to global markets. Russian-made products are known for their durability, reliability, and excellent price-to-performance ratio.

For detailed product specifications, please see the Specifications tab. Contact our team to request pricing, availability, and shipping information.

We provide full assistance with:

Technical consultation and product selection
Bulk pricing and volume discounts
Export documentation and customs clearance
Logistics and shipping solutions
Payment security and transaction support

Technical Specifications

Overall dimensions (HxWxG) for AKB-SHU-01/AKB-SHU-02, mm	800x600x250
Average service life for AKB-SHU-01/AKB-SHU-02, not less	7 a
Average MTBF including maintenance for AKB-SHU-01/AKB-SHU-02	30000
Personal protection class against electric shock for AKB-SHU-01/AKB-SHU-02	0I
Ambient storage humidity limit for AKB-SHU-01/AKB-SHU-02, %	98 (at + 25 degrees Celsius)
Storage temperature limit for AKB-SHU-01/AKB-SHU-02, degree Celsius	From - 60 to + 50
Group of conformity to the conditions of transport and storage for AKB-SHU-01/AKB-SHU-02	3
Maximum relative humidity of environment for AKB-SHU-01/AKB-SHU-02, %	98 (at + 25 degrees Celsius)
Operating ambient temperature limit for AKB-SHU-01/AKB-SHU-02, degrees Celsius	From - 60 to + 40
Category of accommodation by climatic execution for AKB-SHU-01/AKB-SHU-02	UHL2
Degree of protection against environmental influences for AKB-SHU-01/AKB-SHU-02	IP65
Insulation resistance between mains leads and grounding screw for AKB-SHU-01/AKB-SHU-02, not less, MOhm	20
Rated insulation voltage (AC) for AKB-SHU-01/AKB-SHU-02	750 V
Rated main circuit current for AKB-SHU-01/AKB-SHU-02, A	20/10
Rated frequency of AC mains for AKB-SHU-01/AKB-SHU-02	SBVVBG
Rated supply voltage for AKB-SHU-01/AKB-SHU-02, V	220 +/- 20 %
Overall dimensions (HxWxG) for AKB-SS, mm	300x300x150
Average service life for the SHS battery, not less	7 a
Average MTBF including maintenance for the SHS battery 523704:Average MTBF including maintenance for the SHS battery	30000
Protection class of a person against electric shock for AKB-ShS	0I
Maximum ambient humidity during storage for AKB-SS, %	98 (at + 25 degrees Celsius)
Limit storage temperature for AKB-SS, degree Celsius	From - 60 to + 50
Group of conformity to the conditions of transport and storage for AKB-SS	3
Maximum relative humidity of the environment for AKB-SS, %	98 (at + 25 degrees Celsius)
Limit ambient operating temperature for AKB-SS, degree Celsius	From - 60 to + 40
Category of placement according to climatic version for AKB-SS	UHL2
Degree of protection against environmental influences for AKB-SS	IP65
Insulation resistance between mains leads and grounding screw for AKB-SS, not less, MOhm	20
Rated insulation voltage (AC) for AKB-SS	750 V
Rated main circuit current for AKB-SS	6 A
Nominal supply voltage (AC) for the SS-Battery packs	220 V
Overall dimensions (HxWxG) for AKB-SHA, mm	600x400x200
Average service life for AKB-SHA, not less	7 a
Average MTBF including maintenance for Batteries-SA	30000
Personal protection class against electric shock for AKB-SHA	0I
Maximum ambient humidity during storage for AKB-SHA, %	98 (at + 25 degrees Celsius)
Storage temperature limit for AKB-SHA, degree Celsius	From - 60 to + 50
Group of conformity to the conditions of transport and storage for AKB-SA	3
Maximum relative humidity of the environment for AKB-SHA, %	98 (at + 25 degrees Celsius)
Limit ambient operating temperature for AKB-SHA, degree Celsius	From - 60 to + 40
Category of placement according to climatic version for AKB-SHA	UHL2
Degree of protection against environmental influences for AKB-SHA	IP65
Insulation resistance between mains terminals and grounding screw for AKB-USA, not less, MOhm	20
Rated isolation voltage (AC) for battery-USA	750 V
Rated current of main circuit for BKB-SA	16 A
Rated frequency of the AC mains network for AC-Battery-USA	SBVVBG
Rated supply voltage for ACB-SHA, V	220 +/- 20 %
Overall dimensions (HxWxG) for AKB-OBK, mm	600x400x200
Average service life for Batteries-OBK, not less than	7 a
Average MTBF including maintenance for Battery-OSBs	30000
Personal protection class against electric shock for AKB-OBK	0I
Maximum ambient humidity during storage for AKB-OBK, %	98 (at + 25 degrees Celsius)
Limit storage temperature for ABB-OBK, degree Celsius	From - 60 to + 50
Group of conformity to the conditions of transport and storage for Batteries-OBK	3
Maximum relative humidity of the environment for AKB-OBK, %	98 (at + 25 degrees Celsius)
Operating ambient temperature limit for AKB-OBK, degree Celsius	From - 60 to + 40
Category of placement according to climatic version for AKB-OBK	UHL2
Degree of enclosure protection against environmental influences for AKB-OBK	IP65
Insulation resistance between mains leads and grounding screw for BAC-OBK, not less, MOhm	20
Rated isolation voltage (AC) for ABB-OBKs	750 V
Rated main circuit current for AKB-OBC	10 A
Rated frequency of AC mains for AC-BB-OBK	SBVVBG
Rated supply voltage for battery-OBK, V	220 +/- 20 %
Overall dimensions (HxWxG) for Batteries-VSP, mm	433x333x224
Average service life for ACB-VSP, not less	7 a
Average MTBF including maintenance for Battery-BL	30000
Personal protection class against electric shock for AKB-VSP	0I
Maximum ambient humidity during storage for AKB-VSP, %	98 (at + 25 degrees Celsius)
Limit storage temperature for VSP batteries, degrees Celsius	From - 60 to + 50
Group of conformity to the conditions of transportation and storage for ACB-VSP	3
Ambient relative humidity limit for ACB-VSP, %	98 (at + 25 degrees Celsius)
Limit temperature of the operating environment for VSP-Battery, degree Celsius	From - 60 to + 40
Category of placement according to climatic design for AKB-VSP	UHL2
Degree of enclosure protection against environmental influences for ACB-VSP	IP65
Type of explosion protection (enclosure design when located in hazardous areas) for Batteries-VSP	1Ex d IIC T6 Gb X
Insulation resistance between mains leads and grounding screw for battery-VSP, not less, MOhm	20
Rated insulation voltage (AC) for ACB-VSBs	750 V
Rated main circuit current for ACB-VSP	6 A
Nominal supply voltage (AC) for ACB-VSBs	220 V
Overall dimensions (HxWxG) for AKB-BL, mm	400x400x200
Average service life for AKB-BL, at least	7 a
Average MTBF including maintenance for Battery-BL	30000
Protection class of a person against electric shock for AKB-BL	0I
Limit ambient humidity during storage for AKB-BL, %	98 (at + 25 degrees Celsius)
Operating ambient temperature limit for ACB-BL, degree Celsius	From - 60 to + 40
Storage temperature limit for AKB-BL, degrees Celsius	From - 60 to + 50
Group of conformity to transport and storage conditions for AKB-BL	3
Ambient relative humidity limit for BKB-BL, %	98 (at + 25 degrees Celsius)
Category of placement according to climatic version for AKB-BL	UHL2
Degree of protection of the enclosure against environmental impact for AKB-BL	IP65
Insulation resistance between mains leads and grounding screw for BKB-BL, not less than, MOhm	20
Rated isolation voltage (AC) for AC-BLs	750 V
Rated main circuit current for ACB-BLs	6 A
Rated frequency of the AC mains for ACB-BLs	SBVVBG
Rated supply voltage for Battery-BL, V	220 +/- 20 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
