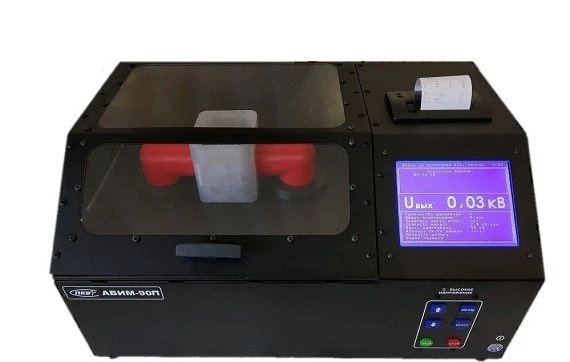

Liquid dielectric testing apparatus AVIM-90P

The apparatus for testing liquid dielectrics AVIM-90P (hereinafter referred to as the apparatus) is designed to measure the breakdown voltage of transformer oil and other liquid dielectrics. Information on the course of tests is presented on the graphic display. The device has a printer, magnetic stirrer, "fast relay" with a response time less than 100 µs, contains a test archive for 2000 test results, calculates test parameters according to GOST 6581-75. The cell is removable 300 ml. Printer - printing on 57 mm wide thermal paper (standard 57mm*30m). Graphic screen - industrial, operating temperature -30...+50 gr. Celsius. Log with the results of tests are stored in the device. Automatic mode of work.
