I/O module DIC552

Data Processing Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

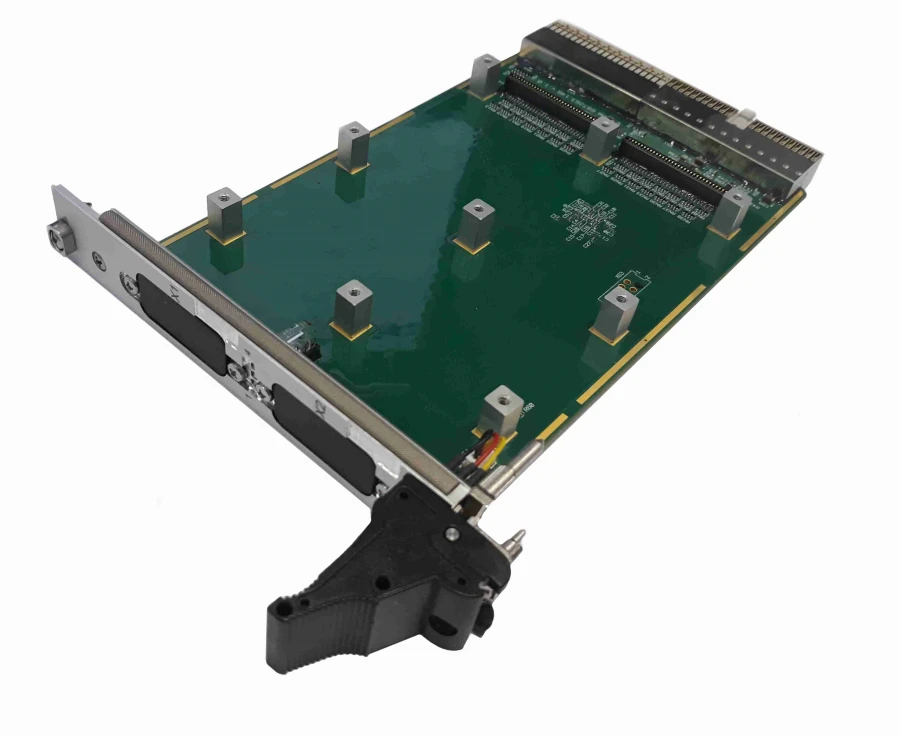

The DIC552 I/O module DIC552 IMES.467444.152 is a universal I/O module for operation on the CompactPCI® bus. The module is created by mezzanine technology and is a carrier with the possibility of installing mezzanines with a front output. Functionality of the module is determined by the installed mezzanines (for example: MIC1003-03, MIC1004-01, MIC1007-01, MIC1010-01, MIC1011-01, MIC1012-0X). Modulb is designed for use in real-time control systems, production control, data acquisition, etc.
DIC552 - mezzanine carrier is made in CompactPCI® standard and provides placement in 3U type constructions. The module allows up to two standard-sized mezzanine boards to be mounted on itself.

Technical Specifications

Installation of up to two mezzanines with a face output	Armoured glass
Interface with CompactPCI 32-bit, 33 MHz system bus	Armoured glass
Interfaces available on the multiplexed bus for each mezzanine	4 SPI interfaces with a maximum word length of 32 bits and clock frequency up to 32 MHz; 4 UART interfaces (baud rate up to 1 Mbaud); 4 SPORT - serial interfaces with a maximum word length of 32 bits and clock frequency up to 32 MHz, as well as on the
Power supply voltage	+12 V, +3.3 V (according to CompactPCI standard)
Capacity excluding mezzanine consumption	not more than 6 W
Power consumption of mezzanines by +12 V	Total: 12 watts maximum; One mezzanine: 12 watts maximum
Power consumption of mezzanines at +3.3 V	Total: 15W max; One mezzanine: 4.5W max.
Operating temperature range	minus 40 to plus 85 °C
Weight	max. 0.2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
