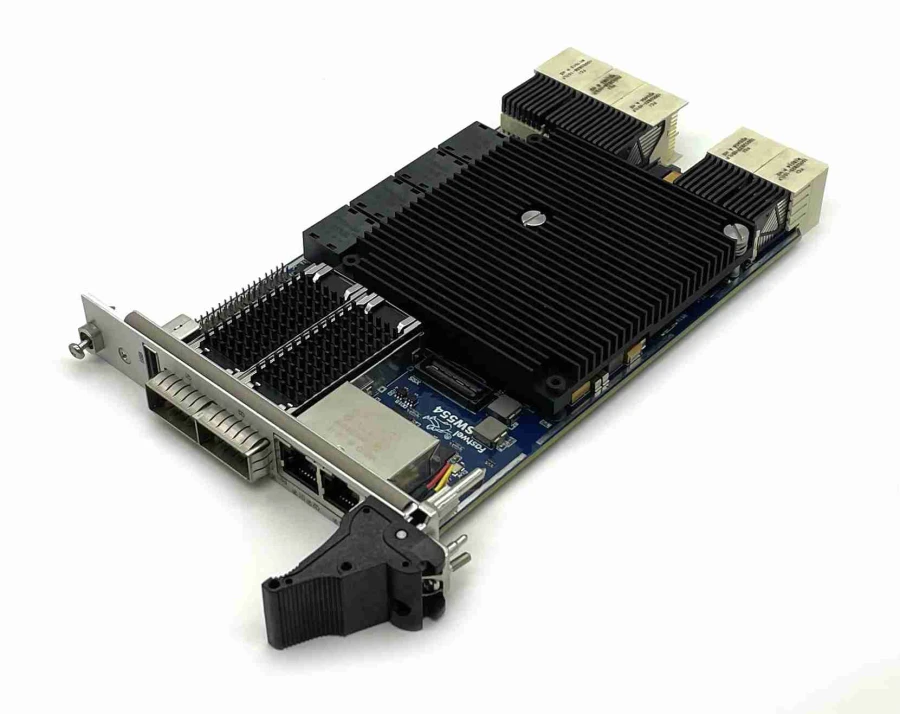

Switchboard module SW554

Data Processing Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Switch module SW554 IMES.467444.138 (hereinafter referred to as the product) is a high-speed managed switch (Fabric Switch) of PCI Express and Gigabit Ethernet interfaces. The product is designed to provide customers with a highly integrated and highly reliable solution in the CPCI Serial 3U form factor for real-time, production control, high-speed data acquisition and processing applications.

Technical Specifications

PCI-E коммутатор	support Flexible Fabric technology; support Tunneled Window Connection mode; support Virtual Ethernet NIC mode; support Shared I/O mode in MultiHost systems; support Peer-to-Peer and Multicast operation modes; flexible configuration capability; support for
Gigabit Ethernet коммутатор	Switching 8 channels 1000BASE-T, brought to the backplane; insulation strength not less than 100V for channels
Управляющий процессор	4 cores PowerPC e5500 64-bit; RAM 4GB DDR3; SSD drive at least 16GB; USB interface; SPI interface
PCI Express ports	Front panel x8 Gen2 ports: -2 x8 Gen2 ports; -6 x4 Gen2 ports; Front panel QSFP (SFF-8682) ports: -2 x4 Gen2 ports, with mezzanine: 4 x4 Gen2 ports; - 1 x8, 2 x4, with mezzanine: 2 x8, 1 x16, or 4 x4 aggregation option
10/100/1000 Mbps Ethernet Ports	8 ports on backplane; 2 ports on front panel
BMC	IPMI bus: - compatibility with Fastwel IPMI protocol; - speed up to 100 kbps; temperature measurement: - control processor temperature monitoring; - PCB temperature monitoring; current/power consumption measurement; mo control support
Supported standards	PICMG® CPCI-S.0 R1.0; PCI Express® 3.0 Specification; PCI Express® External Cabling Specification Revision 1.0; PCI Express® Base Specification 2.0; SFF-8679 Specifications for Enhanced Small Form Factor Pluggable Module SFPs
Software compatibility with OS	PCI Express Fabric switch: - Debian 8 Jessie; - Debian 9 Stretch; - Astra Linux SE Smolensk 1.4; - Astra Linux SE Smolensk 1.5; -Astra Linux SE Smolensk 1.6; Management CPU: - Yocto Linux (kernel 4.x)
Power requirements	supply voltage +12V
Operating temperature range	0 °C to plus 70 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
