Expansion module KIC304

Data Processing Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

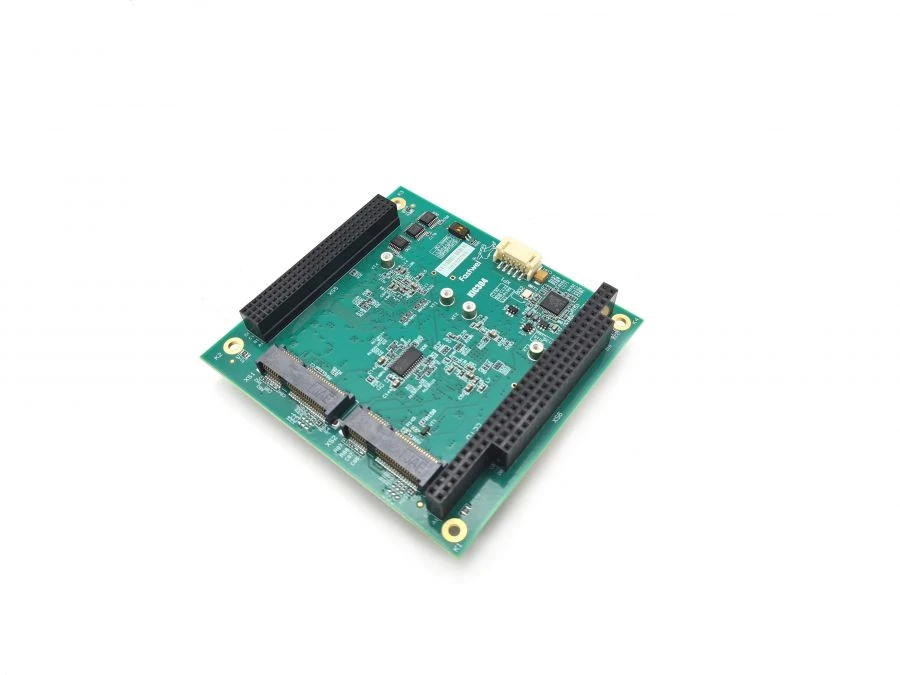

Expansion module KIC304 IMES.465635.020 (hereinafter referred to as the product) is designed to connect up to two modules in Mini PCI Express format to the processor module with PC/104 (PCI) system bus. The product converts the parallel PCI bus into PCI Express by means of a "bridge", then switches two PCI Expresses and converts them into two USBs by means of a SWIDGE switch (switch/bridge). The resulting signals are connected to two Mini PCI Express slots.

Specifications

PCI interface Armoured glass

MiniPCI-E interface for connecting expansion cards PCI-E Gen1 cards supported; USB 2.0 cards supported

SIM card connector connector for Micro-SIM (3FF) size SIM card; two ports available on the board

USB 2.0 interfaces for connecting external devices Support USB 1.1, USB 2.0 (HS, FS, LS); up to 480Mbps exchange rate

Power supply voltage 4.75 to 5.25 V

Maximum current consumption 350 mA (excluding external circuit power supply)

Weight of the Module, not more 0.1 kg

Overall dimensions, mm, not more (95.9±0.8) x (90.2±0.8) x (23.3±1.0)

Temperature range of the module minus 40 °C to plus 85 °C
