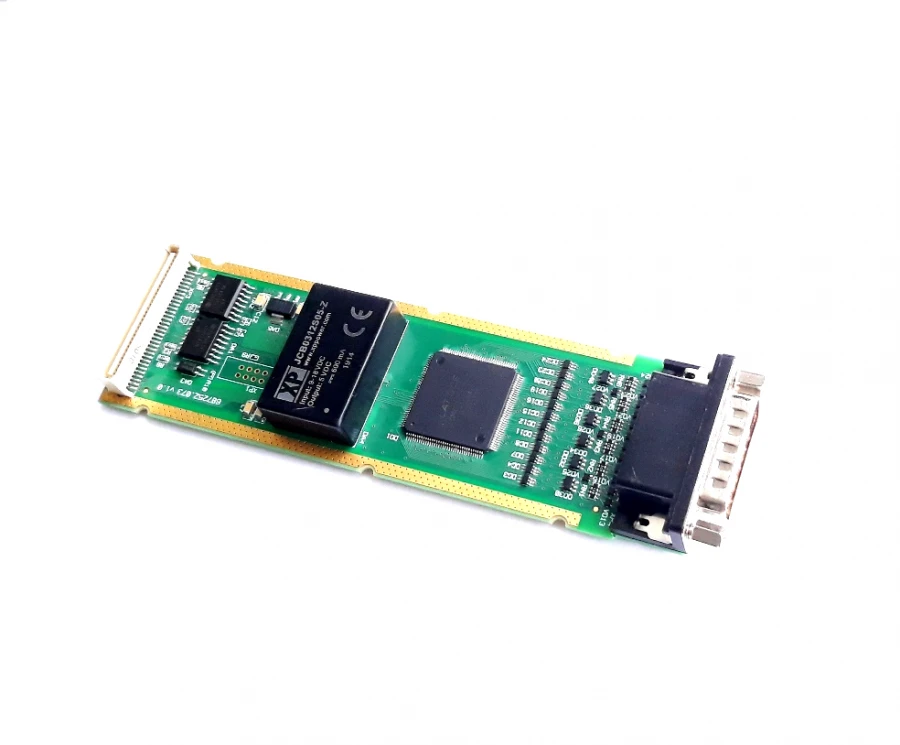

Digital I/O mezzanine MIC1003

Data Processing Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The MIC1003-03 mezzanine is designed for I/O of 24 signals with 5V CMOS logic levels and contains static protection. The output data on the pins change simultaneously, the latency time is 2.1 µs or less. It can be used for signal frequency measurement, serial code reception and output, code conversion, control of alphanumeric indicators, formation of time control diagrams. The product is mounted on the DIC551 I/O module. Mezzanine interaction with DIC551 is via SPI and UART interfaces.

Technical Specifications

Output levels	5 IN CMOS
Protection against static electricity	Armoured glass
Possibility of receiving interruptions when line state changes	Armoured glass
Galvanic isolation of channels	750 ?
Contact debouncing function	Armoured glass
Frequency measurement function	Up to 2000 kHz
Ability to connect UART to any mezzanine pin	RX, TX lines only
Power supply	From carrier board
Power consumption	Not more than 4W
Overall dimensions	Not more than 146,0 mm × 42,0 mm × 18 mm
Operating temperature range	Minus 50 to plus 85 degrees Celsius
MTBF (Mean Time Between Failures)	At least 3,000,000 hours
Software compatibility with OS	Linux Debian 10; QNX 6.5
Weight	Not more than 0.1 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
