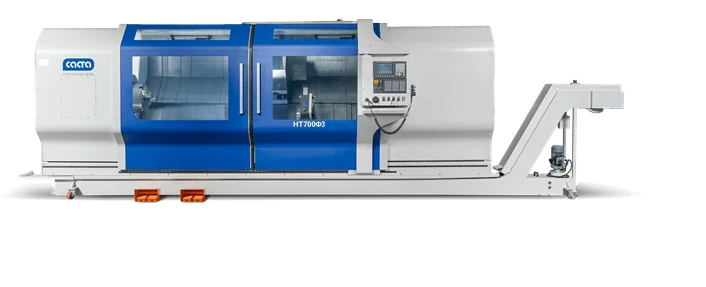

High-Precision CNC Lathe Machine NT700F4 for Fast and Accurate Processing

CNC Metal Lathes

Manufacturer: SASTA PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The NT700F4 lathe machining centre (with modifications NT700C13F4, NT700C18F4, NT700C28F4, NT700C38F4) combines the possibilities for high-speed machining, high positioning accuracy and repeatability, as well as high torque. -Machine version with counterspindle and Y-axis is possible. -All these features expand the machine's technological capabilities, allowing for greater flexibility. The rigid cast iron bed guarantees long-lasting stability of the geometric accuracy of the machine. -The bed is tilted at 45° to ensure compact dimensions and facilitate chip evacuation. -Wide prismatic slide rails and larger diameter ball screws with accuracy class C3 guarantee static and dynamic rigidity for a long service life.

Specifications

Type of product according to PP RF 616

Lathes

Length

5600 mm

Width

2500 mm

Height

2400 mm

Machine weight, not more

12000 kg

Largest diameter of the workpiece to be mounted above the bed

900 mm

Largest diameter of the workpiece to be machined above the slide

700 (505* optional) mm

X-axis travel (transverse movement of the slide)

385 mm

Z-axis travel (longitudinal movement of the slide)

1500 mm

Tailstock movement

1300 mm

Moving in the Y* axis

±55 mm

Accelerated movement in the X axis (transverse movement of the slide)

20 m/min

Accelerated movement in Z axis (longitudinal movement of the slide)m/min20

20 m/min

Type of encoders on linear axes X, Z

Motor encoder

Positioning accuracy

0.005 mm

Repeatability

±0.005 mm

Z-axis screw diameter

SBVVBG mm

Z-axis screw pitch

B1/B8 2100/900 MHz mm

Ball screw class, Z axis

Connection type with servomotor

Straight (coupling)

Z-axis drive power

6 kW

Z-axis drive torque

38 Nm

X-axis screw diameter

40 mm

X-axis screw pitch

10 mm

Ball screw class, X axis

X-axis drive power

6 kW

X-axis drive torque

38 Nm

Maximum spindle speed

1500

Maximum torque

1747/2160 Nm

Speed control

Stepless, in 2 ranges

Main engine power

Fanuc: 30/37 kW

Chuck diameter

450 (500*optz) mm

Chuck type

Hydraulic

Diameter of the hole in the spindle for the bar

117 mm

Attachment of the turret tool

VDI60 (BMT75/VMT85*)

Turret tool change time

0.53

Number of turret tool slots

12 (8* optional) pcs.

Turret positioning accuracy

±4 arc sec.

Maximum rotational speed of the turret drive tool

4000

Moving the tailstock quill

150 mm

Diameter of tailstock quill

150 mm

Tailstock quill taper

Morse 5

Maximum pump pressure of the coolant system

4 (20* optional) bar

Coolant tank capacity

500 l

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
