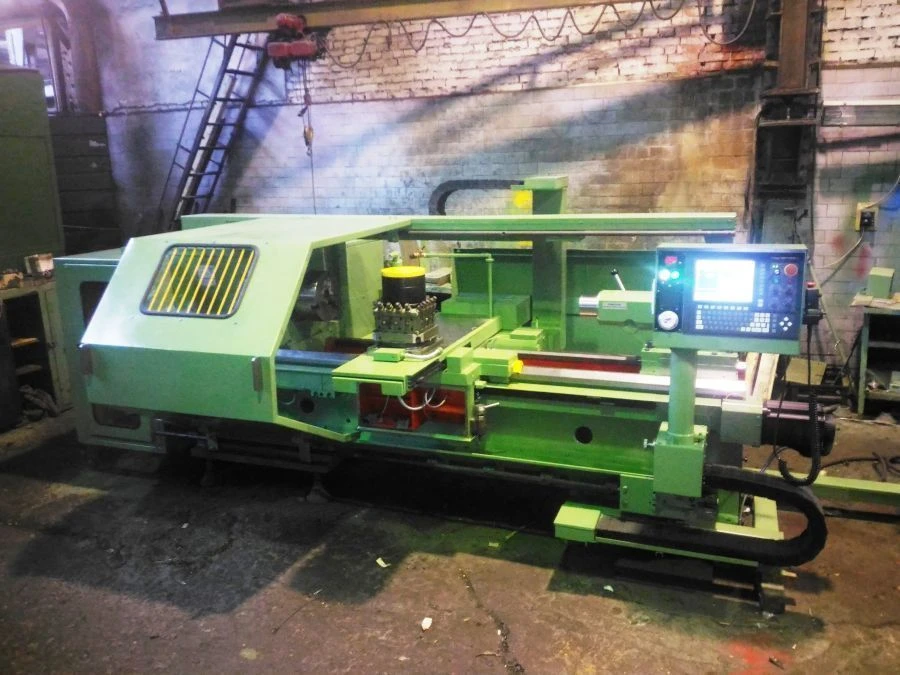

CNC Lathe Machine with Chuck Centering 16R30F3-5 for Precision Machining

CNC Metal Lathes

Manufacturer: RSZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Chuck centre lathe with CNC is designed for turning in centres and chuck of parts with straight, stepped, curved profile, threading.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Length

8800 mm

Width

3460 mm

Height

2100 mm

Machine weight, not more

10500 kg

Machine accuracy class according to GOST8-82

Largest diameter of the workpiece to be machined above the bed

630 mm

Largest diameter of the workpiece to be mounted and machined above the slide

320 mm

Largest diameter of the workpiece to be mounted above the bed

670 mm

Maximum length of the workpiece to be mounted

4900 mm

Longest workpiece length

4760 mm

Height of the tool to be mounted

32 mm

Maximum movement of the slide in the X axis

600 mm

Maximum movement of the slide in Z axis, mm

4760 mm

Discreteness of the Z-axis travel reference

1.0 µm

Discreteness of the X-axis travel reference

1.0 µm

Single-sided positioning accuracy in the Z axis

48 microns

Single-sided positioning accuracy in the X axis

16 microns

Number of controllable coordinate axes

2 pcs

Number of simultaneously controlled coordinate axes

2 pcs

Spindle speed limits, rpm

8...2000

X-axis feed rate limits of the caliper

1-4000 mm/min

Working feed rate limits of the slide in the Z axis

1-4000 mm/min

Speed limits for rapid movements of the slide: X axis

7500 mm/min

Speed limits for rapid movements of the slide in the Z axis

9500 mm/min

Main motion drive power, kW

30 kW

Total power of electric motors installed on the machine tool, kW

40 kW

Roughness of specimen-product: - of external cylindrical surface after finishing machining

Ra 2.5 µm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
