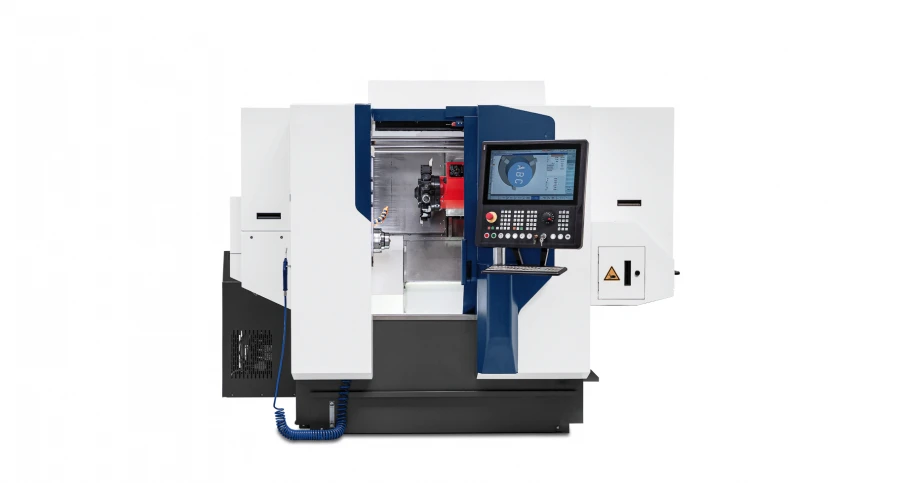

CNC Lathe Machine "MT-45" for Precision Engineering and Metalworking

CNC lathe "MT-45" of trade mark "Unimatic" with CNC system of IntNC PRO type (Ivanovo, Russia) (hereinafter - "machine"), is designed for complex processing of rotational parts of shaft, flange type, by means of various types of turning and milling operations, including for processing of bar blanks with diameter from 6 mm to 45 mm. Maximum chuck size -160mm; maximum rotation speed - 6300 rpm; main spindle power - 13kW; drive tool power - 4kW; Y-axis - +40/- 30mm.; Movement in the X-axis, mm - 160; Movement in the Y-axis, mm - 70; Movement in the Z-axis, mm - 510; Spindle torque Nm 78; Type of tool holder - One turret; Maximum diameter of the workpiece, mm - 430; counterspindle - Yes / possible; rolling guides; bed inclined
