Hardware-software complexes "Orlan 3.0"

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The complexes are intended for measurements of navigation parameters on GLONASS, GPS and GALILEO signals, determination of coordinates on their basis and synchronisation of the internal time scale of the complexes with the national time scale of the Russian Federation UTC(SU), as well as for measurements of speed of vehicles, collection, storage and transmission of data on vehicles.

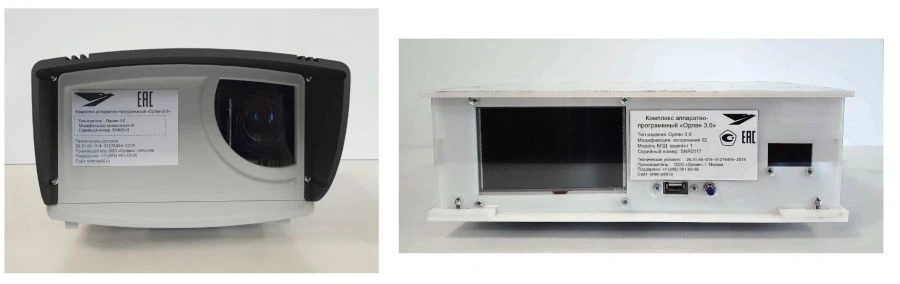

The complexes are produced in two variants of structural design:
- version 01 - monoblock design: data processing unit, recording and other modules integrated in a single housing;
- version 02 - modular design: a separate data processing unit and external recording modules connected to it via communication interfaces.
The complexes provide for different variants of installation and use:
- stationary - modules are placed on supports, posts and other elements of motorway arrangement;
- mobile - modules are placed on the base of vehicles, tripods, tripods, etc..;
- mobile - the modules are placed on board of vehicles.

Specifications

DC supply voltage 10...16 V

Average MTBF 35000

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Dimensions of data processing unit version 02 102 mm

Weight of data processing unit version 02 3 kg

AC mains supply voltage 90...300 V

Power consumption of version 01 Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording W

Energy consumption of version 02 200 W

Permissible installation height of the complex 1...20 m

Average width of the control zone 16 m

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Ambient air operating temperature -55...65 °C

Operating relative humidity, at temperature +25 °C 98 %

Operating atmospheric pressure 60...120

Overall dimensions of version 01 120 mm

Weight of version 01 2.65 kg

Range of vehicle speed measurements 1...320

Limits of permissible absolute error of measurements of speed of vehicles in the control zone with the help of radar module in t ±1

Limits of permissible absolute error of measurements of vehicle speed in the controlled area in the range from 1 to 100 km ±1

Limits of permissible absolute error of measurements of vehicle speed in the controlled area in the range from 100 to 320 kilome ±2

Minimum length of the controlled road section between two complexes 300 m

Limits of permissible absolute error of synchronisation of the time scale of the complex with the national time scale of the Rus ±5

Limits of permissible absolute error (at probability level 0,95) of coordinates determination in plan in frequency range L1 ±3 m

Average service life 10 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
