Device of complex check of automatic locomotive signalling UKP-ALS

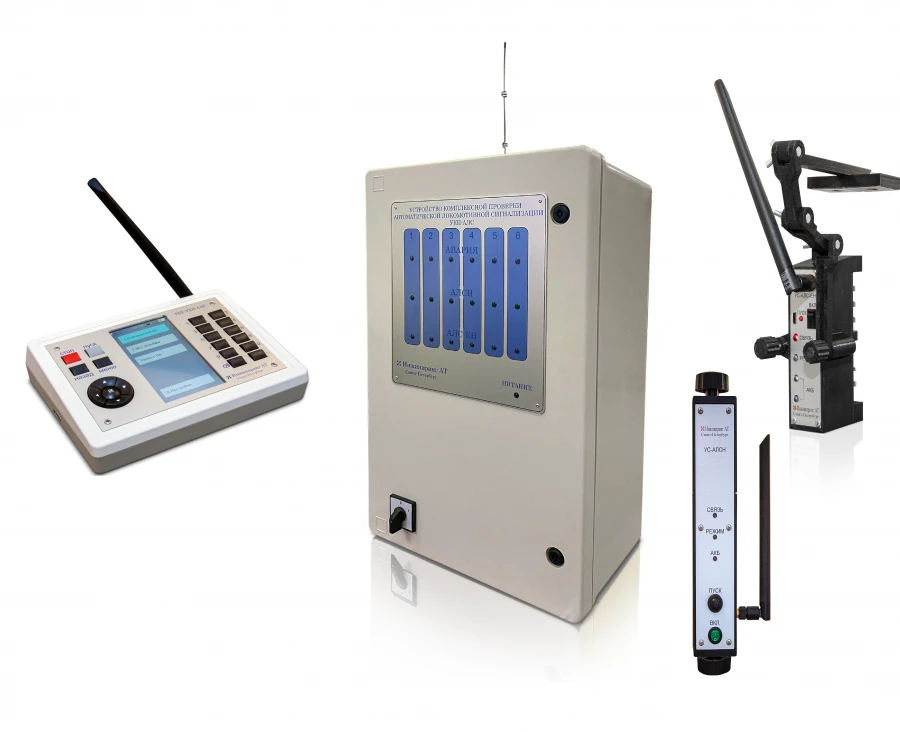

The device for complex check of automatic locomotive signalling (hereinafter referred to as UKP-ALS) is designed to check the functioning of on-board automatic locomotive signalling equipment at depot control points and locomotive maintenance points without removing ALS equipment from the locomotive. UKP-ALS allows checking the onboard ALS equipment when receiving ALSN and ALS-EN code signals. UKP-ALS allows to check the compliance with the norms of time parameters of counter relays and relays SR, thereby assessing the level of noise immunity of relay on-board ALSN equipment. UKP-ALS consists of the following components: 1. generator control cabinet - SHUG 2. Portable console RPU-UKP-ALS 3. Locomotive traffic light reading device RS-ALSN 4. Locomotive indication unit reading device US-ALS-EN 5. Set of accessories (power supplies, interface cables).
