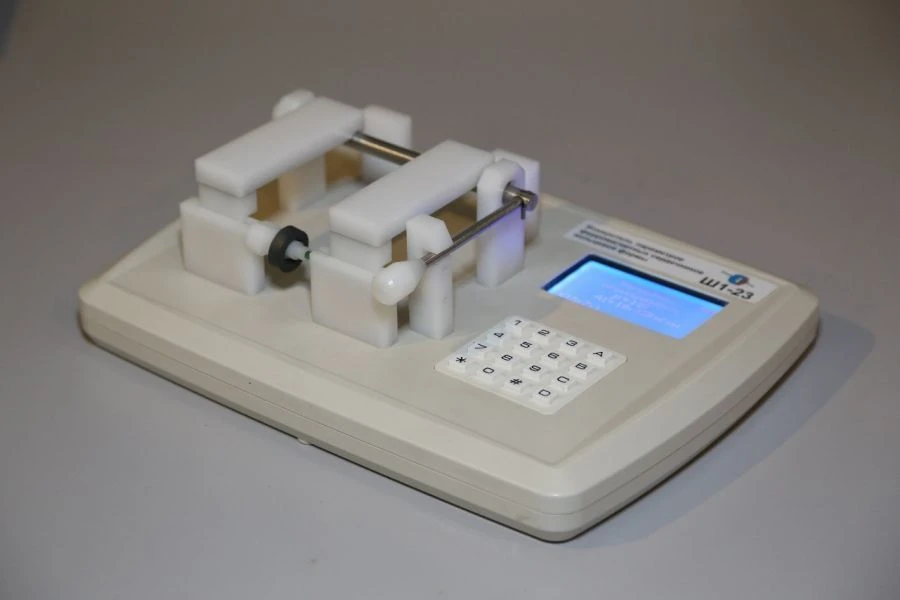

Ferromagnetic core meter Sh1-23
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Measurer of ferromagnetic cores Sh1-23 is designed to measure the initial magnetic permeability of ferromagnetic cores of toroidal (ring) shape.
Specifications
Measurement range of inductance
10...300
Mode of operation
Determination of the value of the initial magnetic permeability of the ferrite ring;;measurements according to the principle of "good" / "not good" with setting the maximum permissible values of the initial magnetic permeability.
Overall dimensions (W×H×H)
285×90×30
Name
Meter of parameters of toroidal shape toroidal cores sh1-23
Mode of operation
Determination of the value of the initial magnetic permeability of the ferrite ring;;measurements according to the principle of "good" / "not good" with setting the maximum permissible values of the initial magnetic permeability.
Measurement range of inductance
10...300
Inner diameter of the core.
from 4 mm
Measuring range of initial magnetic permeability
1...100000
Name
Meter of parameters of toroidal shape toroidal cores sh1-23
Weight
2
Measuring range of initial magnetic permeability
1-100000
Inner core diameter
4...150
Overall dimensions
285×90×30 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
