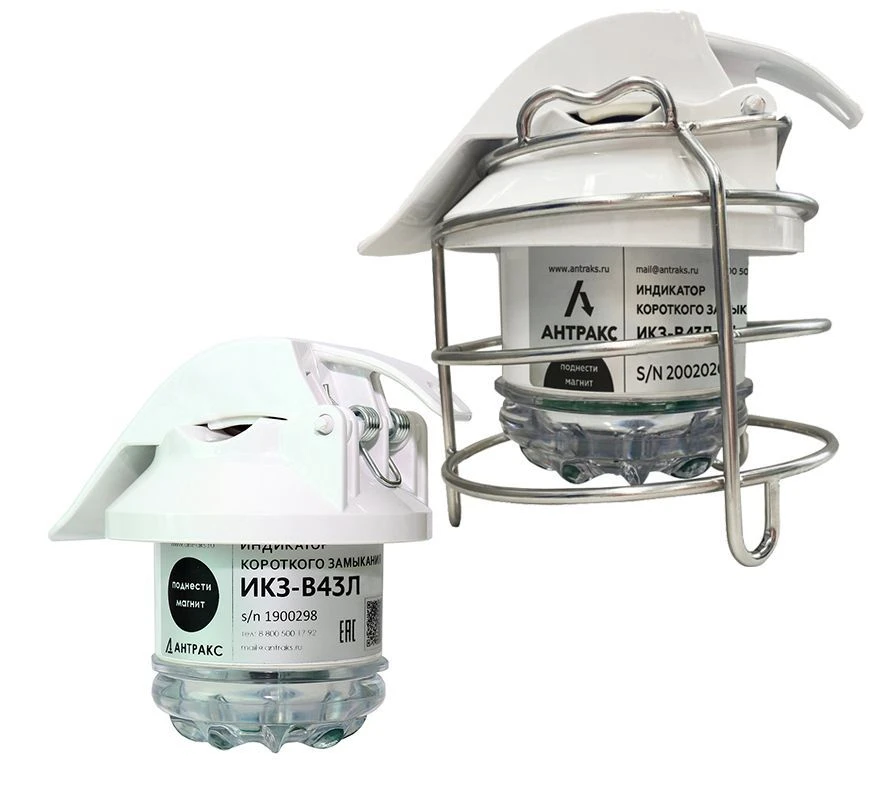

Short-circuit indicator of IKZ-B type (model IKZ-V43L-U3)

Electrical Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The set of short-circuit indicators is designed to determine the damaged section of the transmission line voltage 110 kV, frequency of the network 50 Hz. Each indicator is installed on the wire of the controlled line, wire diameter 7-40 mm, with one-way and two-way feeding. IKZ-V43L fixes MFZ from 20 A, determines the direction of emergency currents flow, which is very convenient for use at the boundary of balance belongings, state borders, at water barriers.
IKZ-V43L transmits information about emergency situations via radio channel of BLE standard, when connected to BSPI-3L-MR via GSM communication it provides the possibility of remote notification of the dispatcher. Power supply Lithium battery 19 Ah. Battery life in standby mode is 7 years. Temperature range: Standard from - 40 deg C to +70 deg C; Extended from - 60 deg C to +85 deg C. Indicator protection degree IP 68. For protection of indicators from induced voltage Faraday cage is used.

Specifications

Absolute current trip threshold 20...1000 A

Local communication: Bluetooth short-range radio link 2.4

Voltage class of overhead lines 110 kV

Network frequency SBVVBG

Short-circuit current sensitivity 20 A

Differential current threshold in A 20...500 A

Differential current trip threshold in % 50...500 %

Blanking of inrush currents 0...200

Visibility of the visual indication during daylight hours 100 m

Visibility of visual indication at night time 500 m

Power supply Lithium battery (19 Ah) 1 pc

Battery life in standby mode 7 a

Wire diameter 5...40 mm

Time to analyze the alarm process 1...200

Temperature range standard -40 to +70 °C

Temperature range extended -60 to +85 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
