System of control and search of insulation faults in operational DC networks SKIPETR SKI SKIPETR

Electrical Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

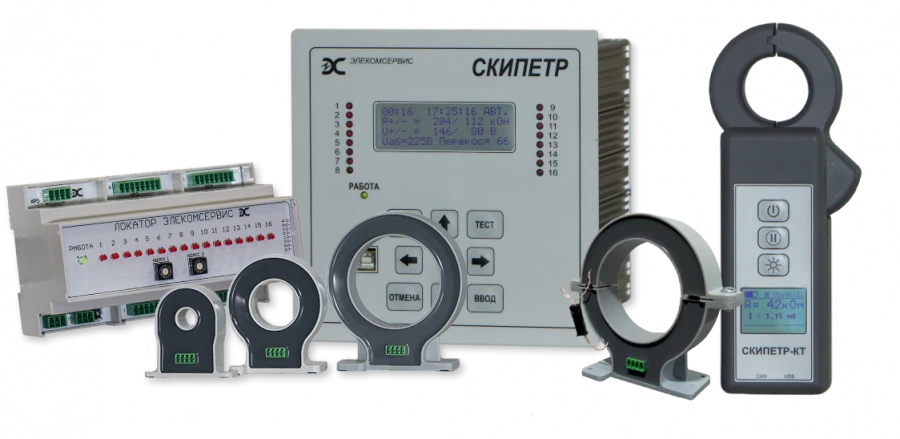

SKI SKIPETR is designed for continuous monitoring of DC network insulation resistance and automatic detection of connections with broken insulation without disconnecting consumers.
It is optionally equipped with current clamps SKIPETR-KT for manual search of earth fault location.
It is possible to use detachable current sensors of feeder connections in the reconstruction of existing facilities.

Specifications

Rated voltage of the monitored DC network 110 V

Permissible DC mains voltage range 87...300 V

Range of readings when monitoring the insulation resistance of the mains poles 0 - 999 kOhm

Insulation resistance reduction setpoint adjustment range 1 - 999 kOhm

Reading range when searching for insulation faults 0 - 999 kOhm

Maximum network capacitance with respect to ground 300 µF

Automatic detection of feeder with damaged insulation Armoured glass

Possibility of manual short-circuit search with specialised pincers Armoured glass

Monitoring of bays insulation resistance during manual search Armoured glass

Possibility of application of detachable current sensors of connections Armoured glass

Co-operation with typical T-type insulation control system or its analogue Armoured glass

Designation SCEPTRE

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
