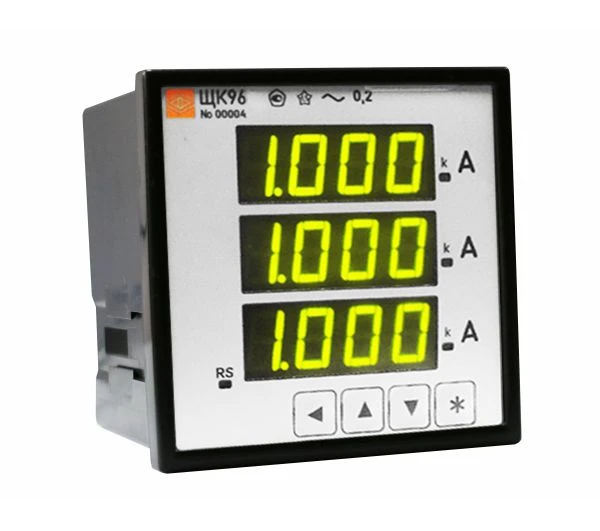

The device ShchK96 is designed to measure the effective value of current, voltage and frequency in single-phase and three-phase electrical networks of alternating current. The possibility of information exchange via RS485 interface (Modbus RTU protocol) and availability of output unified DC signals allow to use the device in automated systems of various purposes. The instrument is a multi-channel multi-dimension and has versions by input signals, measuring ranges, number of channels, power supply voltage, interface, discrete and analogue outputs, colour of indicators, accuracy class.

The device additionally has the possibility of programming the range of readings (device with nominal currents of channels 1 A, 5 A and voltage 100 V) and the level of controlled values of input signals (setpoints), operational change of brightness of digital indicators. ShchK96 is included in the State Register of measuring instruments of the Russian Federation No. 42450-11.

Interverification interval - 3 years.

Specifications

Overall dimensions, mm

96x96x103 (with back cover), 96x96x75,6 (without back cover)

Weight, kg, not more

0,4

LED indication (single and seven-segment indicators)

Seven-segment indicators (4 indicators per unit) - for displaying the values of voltage, current or frequency according to the order; single LED indicators displaying the interface operation, highlighting the unit prefix.

Input signal (direct connection)

50 V; 100 V; 250 V; 500 V; 500 mA; 1 A; 2 A; 5 A

Input signal (connection via voltage transformer or current transformer)

Range can be anything from 2.0 to 120.0 V for connection via 100 V voltage transformer; from 0.020 to 1.000 A for connection via 1 A current transformer or from 0.10 to 5.00 A for connection via 5 A current transformer: 380 V; 660 V

Frequency range of measured / converted signals

45 to 65 Hz

Maximum reading range

0 to 9999

Measurement time

1,0 ?

Basic error

±0,5 %; ±1,0 %

Galvanic isolation of input and output circuits, power supply circuits

Got it

RS485 communication interface

Quantity: 1; Modbus RTU protocol

Analog outputs

Ranges: 0...5 mA, 0...20 mA, 4...20 mA (for each displayed parameter)

Discrete outputs

For each channel (the number of discrete outputs corresponds to the number of channels) with switching of DC voltage up to 300 V and current up to 100 mA or AC voltage up to 200 V and current up to 100 mA for each output.

Power supply voltage

12VH - (12 +6/-3) VDC, 24VH - (24 +12/-6) VDC, 220VU - 85 to 253 VAC (50 ± 0.5) Hz or 120 to 265 VDC, 230V - 85 to 253 VAC (50 ± 0.5) Hz

Power consumption from the power supply circuit, not more

12 V-A

Reprogramming

Via "Configurator" program (RS485 interface); via front panel buttons

Operating temperature range

-40 to +55 °C (relative humidity 90% at +30 °C)

Degree of protection

IP40

Mounting

In the shield

Inspection interval

3 years

Warranty period of operation

24 mos.

Average service life, at least

15 years

Average MTBF

100000 ?

Height of indicator sign, mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
