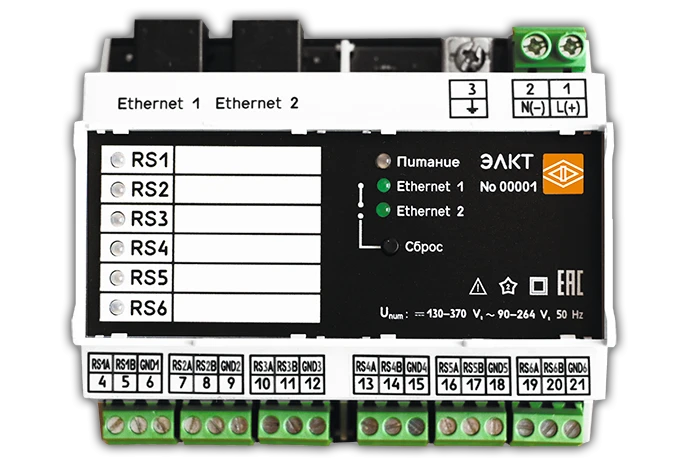

ELKT telemechanics controller

The ELCT telemechanics controller can be used as the main telemechanics device of the controlled point and provide information interaction with the telemechanics control point via Ethernet interface. The functions of the telemechanics controller include interrogation of discrete I/O modules, measuring devices and converters via 6 independent RS485 interfaces, local data archiving, interface/protocol conversion and data transmission to the upper level of telemechanics systems. Capabilities: collection of information from electronic devices, input/output modules of discrete and analogue signals, measuring devices and converters, commercial meters; connection of up to 200 external devices via 6 interfaces RS485 - digital devices, measuring converters, input/output modules supporting protocols IEC 60870-5-101, Modbus RTU, connected on the principle of bus topology (provided that all devices on the bus use the same protocol...).
