AC Current Measuring Converter EP34C - Ideal for Electrical Circuits

Electrical Measuring Devices

Manufacturer: ELECTROPRIBOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

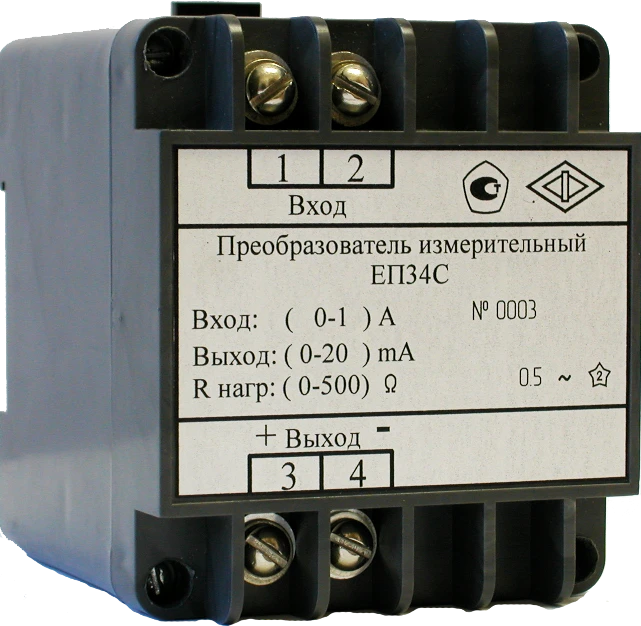

The EP34S converter is designed for linear conversion of alternating current in electrical circuits with nominal voltage up to 660 V into a unified DC output signal. The converter is used for current control of electrical systems and installations, for automation of various objects of power engineering and in other areas of industry. The converter belongs to single-channel products.

Mounting is made on a standard DIN-rail with the width of 35 mm. EP34S is included in the State Register of measuring instruments of the Russian Federation No. 32200-06.

Interverification interval - 24 months (at 8-hour daily operation).

Specifications

Overall dimensions, mm

70x85,5x79

Weight, kg, not more

0,4

Input signal

0...0.5 A; 0...1 A; 0...2.5 A; 0...5 A; 0...25 A; 0...50 A; 0...100 A

Basic error

±0,5 %

Galvanic isolation of input and output circuits

Got it

Analog output

Quantity: 1; range: 0...5 mA; 0...20 mA

Nutrition

Measuring circuit

Consumption power, not more

From the input signal circuit, not more than: 1.2 V-A

Operating temperature range

-30 to +50 ºC (95 per cent relative humidity at +35 ºC)

Degree of protection

IP00

Mounting

DIN rail 35 mm

Inspection interval

24 mo (at 8-hour daily operating time)

Warranty period of operation

4 years

Average service life, at least

10 years

Average MTBF

20000 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
