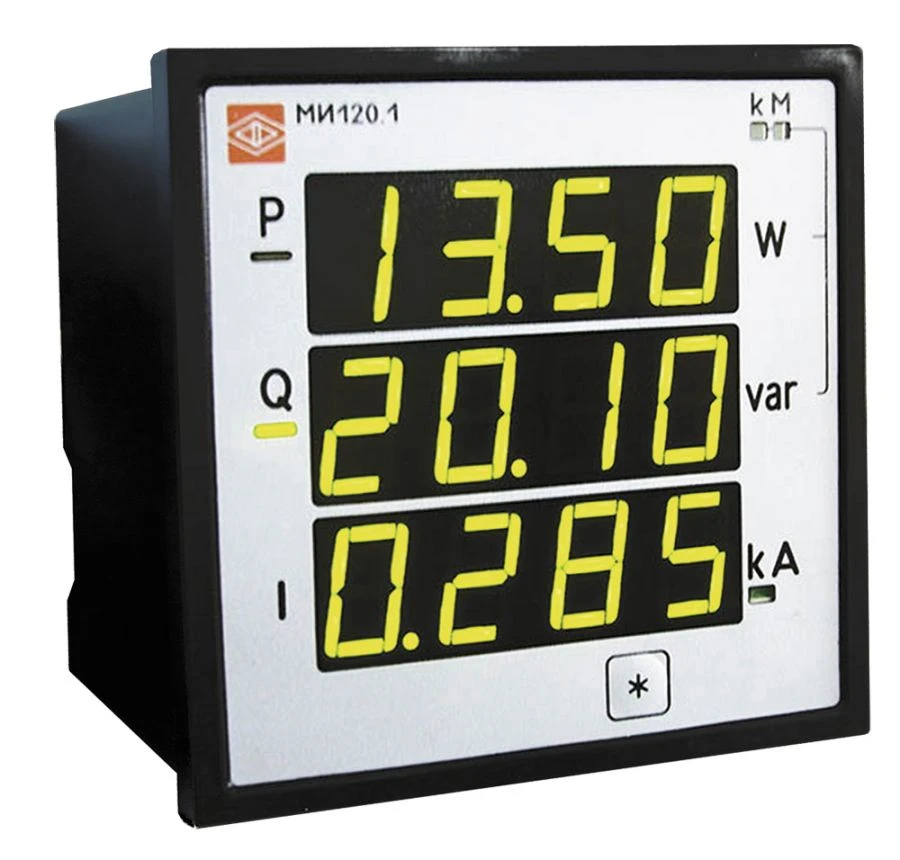

Digital Indication Module MI120.1 for Accurate Measurement Display

Electrical Measuring Devices

Manufacturer: ELECTROPRIBOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Display modules MI120.1 are designed for displaying measurement results of digital measuring devices, converters and can be used at power stations, substations and distribution points of generating, grid energy companies and industrial enterprises. Several modules can be connected to one measuring instrument or converter. One MI120.1 can be connected to one measuring instrument or transducer. Displayed parameters: current value, active and reactive power value.

Specifications

Overall dimensions, mm

120x120x78 (without protective cover), 120x120x102,1 (with protective cover)

Weight, kg, not more

0,4

Displayed parameters

Mean effective value of phase current; Total active power; Total reactive power

Indication

3 blocks of seven-segment indicators (4 indicators per block); sign height: 20 mm

RS485 communication interface

Quantity: 1; Modbus RTU protocol

Power supply voltage

5VH - (5+4/-0.5) VDC; 12VH - (12+6/-3) VDC; 24VH - (24+12/-6) VDC; 220VU - universal supply: supply voltage from 85 to 253 VAC 50 Hz or 120 to 265 VDC

Power consumption from the power supply circuit, not more

4 V?A

Reprogramming

Via "Configurator" program (RS485 interface); via front panel buttons

Operating temperature range

-40... +70 °C (relative humidity 95% at +35 °C)

Degree of protection

IP40

Mounting

In the shield

Warranty period of operation

24 mos.

Average service life, at least

25 years

Average MTBF

200000 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
