I/O module DIC553

Data Processing Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

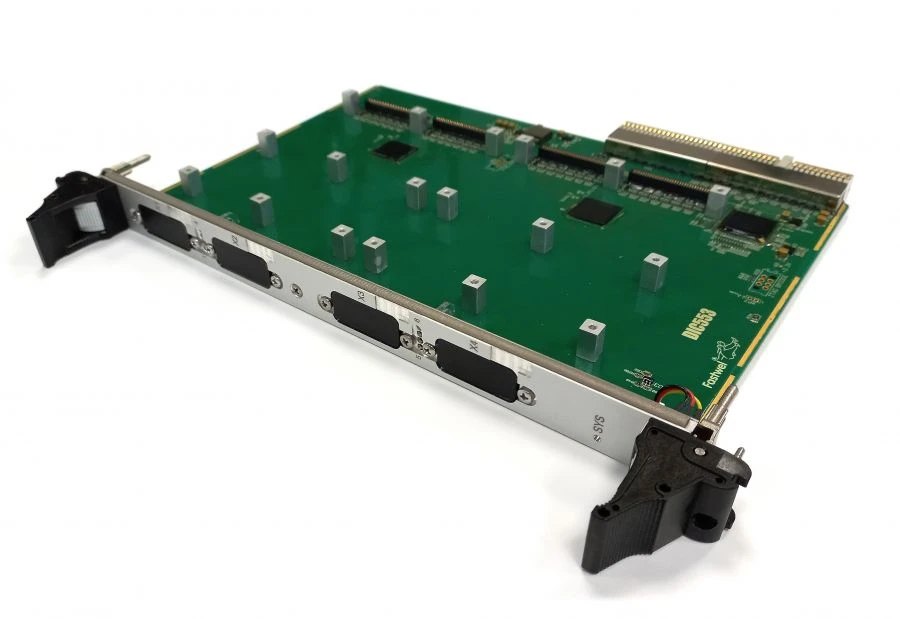

The DIC553 I/O module is a universal I/O module for operation on the CompactPCI® bus, designed for use in real-time control systems, production control, data acquisition, etc. The module is made in a 6U design and has the ability to install four MIC10xx mezzanine boards.

Technical Specifications

Installation of up to four mezzanines with front terminal	Armoured glass
Interface with CompactPCI 32-bit, 33 MHz system bus	Armoured glass
Interfaces available on the multiplexed bus for each mezzanine	4 SPI interfaces with a maximum word length of 32 bits and clock frequency up to 32 MHz; 4 UART interfaces (baud rate up to 1 Mbaud); 4 SPORT - serial interfaces with a maximum word length of 32 bits and clock frequency up to 32 MHz, as well as on the
Power supply voltage	+12 V, +5 V, +3.3 V (according to CompactPCI standard)
Capacity excluding mezzanine consumption	not more than 12 W
Power consumption of mezzanines by +12 V	Total: 12 watts maximum; One mezzanine: 12 watts maximum
Power consumption of mezzanines by +5 V	General: not more than 24 W; One mezzanine: not more than 12 W
Power consumption of mezzanines at +3.3 V	Total: not more than 20 W; One mezzanine: not more than 4.5 W
Operating temperature range	minus 40 °C to plus 85 °C
Weight	max. 0.4 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
