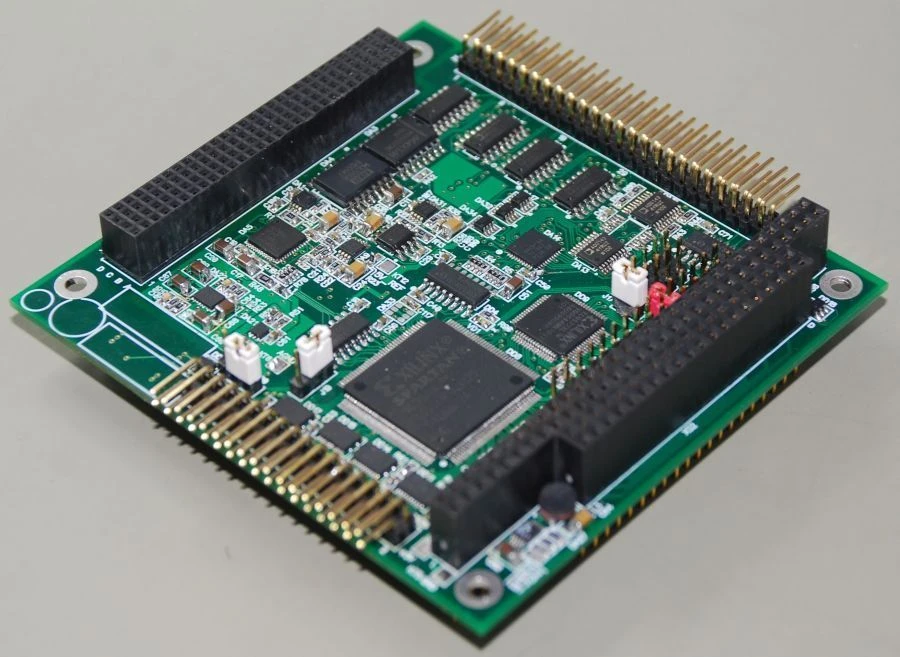

Module of analogue-digital input-output AIC324

Data Processing Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The analogue-digital I/O module is designed for input output of analogue and discrete signals from real-time control systems, production control, high-speed data acquisition and processing. In addition, the module allows you to quickly replace the operating software of the embedded FPGA (FPGA), which provides additional opportunities to adapt the module to specific tasks. The module is designed in PC104 standard and has the following structure of I/O channels: 32 galvanic isolated analogue inputs; 4 galvanic isolated analogue outputs; 30 digital I/O. The supply voltage - plus 5 V is supplied via the PC104 system connector. Consumption - 0.6 A or less. The isolation strength of the analogue path is 1000V.

Technical Specifications

Size	Not more than 105.2 x 96 x 23.3 mm
Analogue input	32 single-wire or 16 differential voltage and current input channels with group galvanic isolation
Analogue output	4 single conductor voltage output channels with group galvanic isolation
Binary I/O	24 + 6 + 7 channels of discrete I/O compatible with TTL/CMOS levels
System bus	8/16-bit ISA bus; PC104+ pass-through connector.
Operating temperature range	from minus 40°C to plus 85°C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
