Available for Import

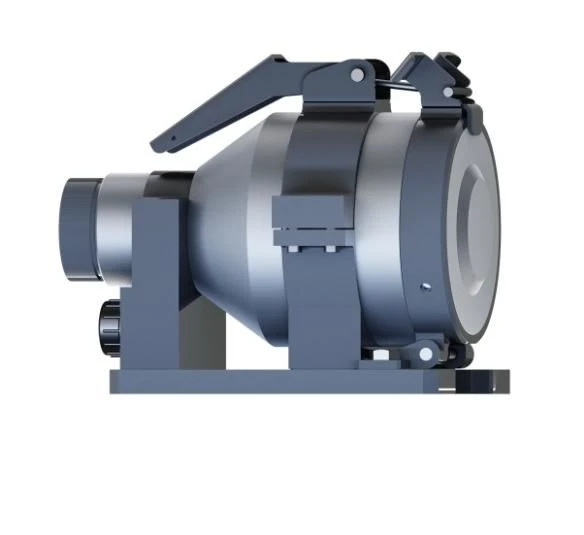

Detection device UDAG-08P

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for measuring the volumetric activity of iodine-131 vapour

Specifications

Structure Detection unit BDAG 07P; Flowmeter unit; Control unit BUM 212P.

Number of interfaces RS-485/422/232 2 pc

Number of channels 1 pc

Atmosphere type II and IV

Degree of protection (IP) IP53 for BUM-212R, IP3X for BDAG-07R detection unit, IP67 for flowmeter unit (for delivery to Ruppur NPP according to GOST14254-96 - IP53 for BUM-212R, IP3X for BDAG-07R detection unit, IP67 for flowmeter unit).

EMC group III

Seismic resistance category I and II

Safety class according to NP-001 3H and 3NU

Weight 55.6 kg

Overall dimensions (H x W x D), mm 264x212x195 (Detection unit BDAG 07P); 349x154x57 (Flowmeter unit); 357x216x129 (Control unit BUM 212P).

Operating temperature range -10...55 °C

Basic relative error of measurement 30 %

Measurement range of volumetric activity, Bq/m3 3,7x10?-2 at measurement time of 24 h; 3,7x10?0 at measurement time not less than 600 s. - 3,7x10?0 at measuring time 24 h; 3,7x10?+6 at measuring time not less than 600 s. 3.7*100 to 3.7*106 Bq/m3 at measurement time not less than 600 s.

Power consumption 22

Number of measuring channels 1 pc

Interface type RS-485, USB

Power supply voltage 220 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
