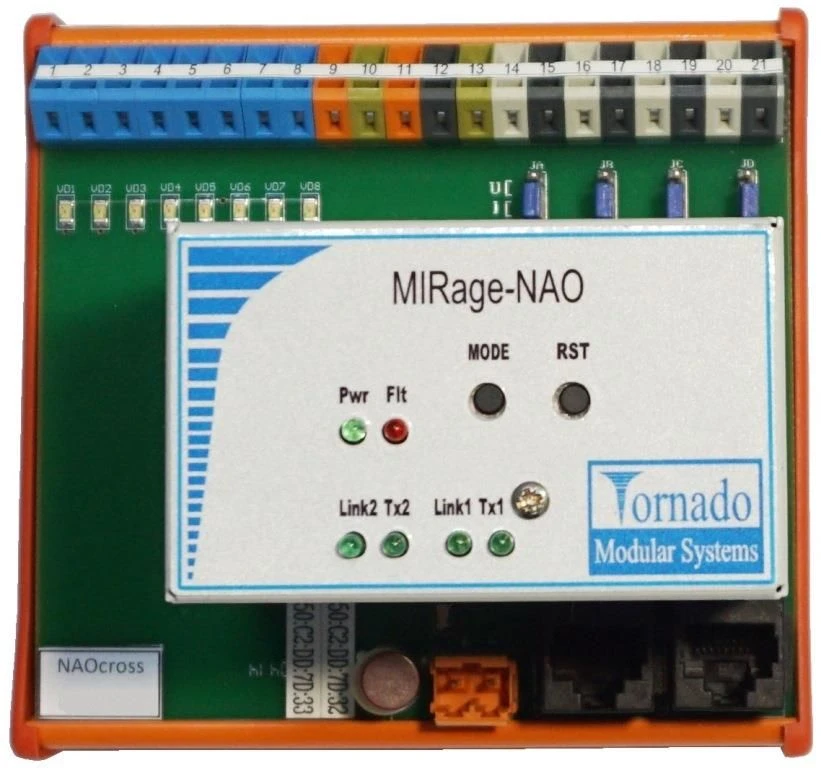

Analogue output and digital I/O unit. 4 output unified current/voltage signals and 8 binary channels

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The MIRage-NAO devices are devices for output of analogue signals and input-output of discrete signals. They have 4 analogue measurement (IR) output (AO) channels designed to generate analogue voltage or current signals. In addition to the analogue channels, the devices have 8 discrete input/output (DIO) channels with independent adjustment for the direction of binary signal transmission - the DIOs can be individually assigned as either input (DI) or output (DO). The signals are generated under the control of commands transmitted over a redundant Ethernet10/100 twisted pair digital interface using the ModBus protocol. MIRage-NAO devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Number of discrete I/O channels 8 pc

Number of measurement output channels 4 pc

Interface type Ethernet 10/100BaseTX - 2 channels

Request response time at 100 Mbit network speed, no more than 2

Data transfer rate 100

Data exchange protocol Modbus TCP/UDP slave

External supply voltage (+/- 15%) 24 V

Consumption current without taking into account sensors, max. 115 mA

Galvanic insulation Group

Overall dimensions 114x108x111 mm

Weight, not more 450 g

Mechanical design DIN rail mounting

Wago terminal block, conductor cross-section up to 2.5 mm2

Operating temperature range -25...70 °C
