Available for Import

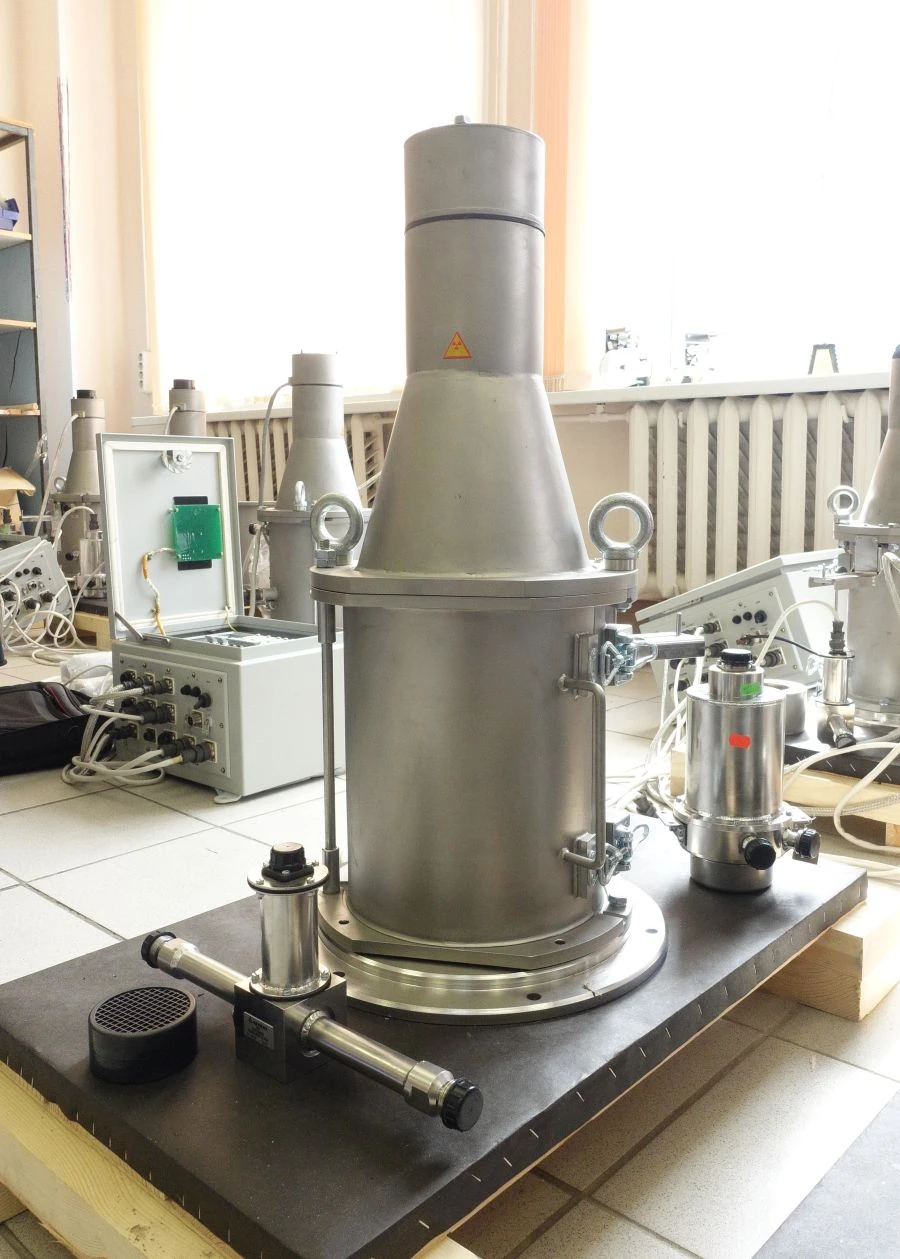

Detection unit BDAG-05P1
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Designed for measuring the volumetric activity of iodine-131 vapour (with two detection units)
Specifications
Structure
Crane distributor; Detection unit BDAG-06P1; Flow meter unit; Control unit BUM-207P.
Number of interfaces RS-485/422/232
2 pc
Number of channels
2 pc
Atmosphere type
II and IV
Degree of protection (IP)
IP53 for control unit BUM-207P, IP3X for detection unit BDAG-06P1, IP67 for flowmeter unit, IP65 for crane distributor (for delivery to NPP "Ruppur" according to GOST 14254-96 - IP53 for control unit BUM-207P, IP3X for detection unit BDAG
EMC group
I I I
Seismic resistance category
|
Safety class according to NP-001
3NU
Weight
221.7 kg
Overall dimensions (H x W x D), mm
184 240 152 (Crane distributor); 379 706 379 (Detection unit BDAG-06P1); 349 154 57 (Flowmeter unit); 383 362 270 (Control unit BUM-207P)
Operating temperature range
-10...55 °C
Basic relative error of measurement
30 %
Measurement range of volumetric activity, Bq/m3
Daily measurements 3.7x10E-2; Current measurements 3.7x10E0 - Daily measurements 3.7x10E0; Current measurements 5.0x10E+6
Power consumption
33
Number of measuring channels
1 pc
Interface type
RS-485
Power supply voltage
220 V
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
