Defectoscopes for monitoring of steel ropes automated INTROS-AUTO

Magnetic Flaw Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

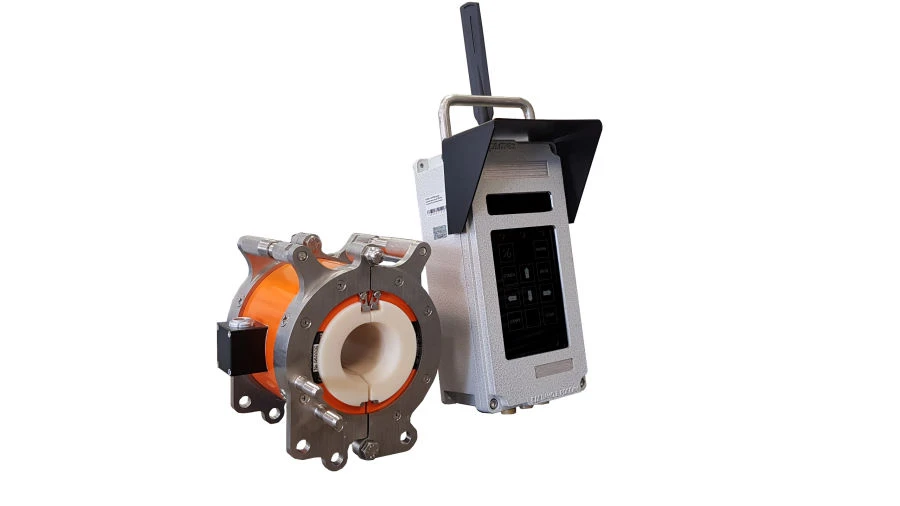

INTROS-AUTO is designed to monitor the technical condition of steel ropes (hereinafter "ropes") of drilling rigs, hoisting machinery, mine hoisting rigs, ropeways and other hoisting and transport installations in automatic mode.INTROS-AUTO is used for continuous or discrete (periodic) control of steel wire rope, subjected to operational, mechanical and climatic effects during operation. Rope rejection is carried out by two criteria - the number of broken wires (LD) on a given length of rope and loss of metal section (LS).

Specifications

Degree of protection against penetration of water, dust IP 66

Permissible ambient temperature -40...50 °C

Threshold of sensitivity to wire breakage (percentage of the area of broken wires from the total metal section of the rope) 0.5 %

Tolerance limit of absolute error of measurement of rope section loss in metal 2 %

Speed of control 0.5...5

Permissible outer diameters of controlled ropes 28...72 mm

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing
