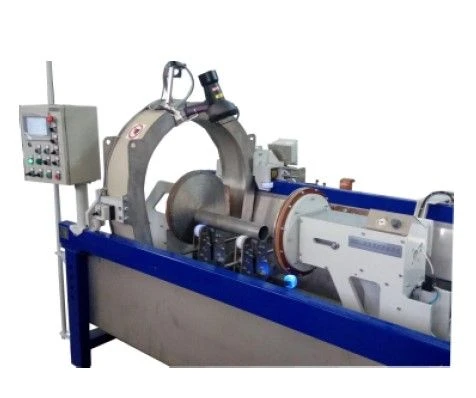

Magnetic Powder Flaw Detector MAGNITEST B-2500 for Identifying Surface Defects

Magnetic Flaw Detectors

Manufacturer: VIMATEK OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Magnetic powder flaw detector MAGNITEST B-4000 Magnetic powder flaw detector MAGNITEST B-3000 Magnetic powder flaw detector MAGNITEST B-1000

Description

The flaw detector provides detection of longitudinal and transverse defects on the surface of parts with maximum sensitivity according to GOST R 56512-2015, ISO 9934. Diameter of the part covering the maximum up to 600 mm. Part length from 20 mm to 1000/4000 (depends on the flaw detector model). Weight of the part up to 2 000 kg. Parts are inspected using the wet method. Advantages: <ul> <li>- automation of inspection operations;</li> <li>parameter setting by means of a touch screen;</li> <li>display of current inspection parameters on the screen;</li> <li>adjustment of the compression force of the circular magnetising contacts from the touch screen is possible;</li> <li>saving in the memory of the controller modes for the used nomenclature of products;</li> <li>saving the library of control modes.</li> </ul>

Specifications

Length of the part to be monitored

20...2500 mm

Maximum diameter of the workpiece to be monitored

600 mm

Maximum mass of the workpiece to be monitored

2000 kg

Power supply, V;Hz

SBVVBG

Power consumption, max.

450 kW

Inner diameter of the moving coil

650 mm

Type of magnetization

Longitudinal, circular, combined

Maximum field strength of the rectified two-half-period current in the center of the longitudinal magnetizing coil, not less, ?

422

Maximum AC field strength in the center of the longitudinal magnetizing coil, not less, ?/cm

422

Slurry preparation and application system

Built-in, automatic

Watering the slurry

manual, automatic

Maximum AC and rectified circular magnetizing current strength

25000 A

Maximum circular magnetising current force

100 A

Demagnetization system

Built-in, automated

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
