Available for Import

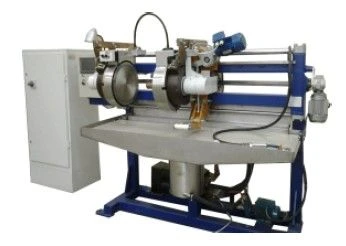

Magnetic powder flaw detector MAGNITEST M-500

Magnetic Flaw Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Magnetic powder flaw detector MAGNITEST M-1000

Description

Defectoscope provides detection of longitudinal and transverse defects on the surface of parts with maximum sensitivity according to GOST R 56512-2015, ISO 9934. The diameter of the part, covering, maximum up to 500 mm. Length of the part clamped between the headstocks up to 500 mm. Weight of the part up to 10 kg. Control of parts is carried out by wet method.

Specifications

Magnetizing current AC, DC

Maximum length of the object to be monitored 500 mm

Weight of the object to be monitored (max. up to) 10 kg

Maximum value of the circular magnetization current amplitude. 7500 A

Value of longitudinal magnetic field strength between headstocks separated by 300 mm, A/cm, not less than 200

Maximum magnetic field strength of the solenoid center, A/cm, not less than 200...450

Illumination of the control object surface with white light, not less than 1000

Power supply voltage 220...380 V

Power consumption 50...200 kW

Mains current frequency SBVVBG

Weight (max.) 300 kg

Occupied area of the workshop 6.5

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
