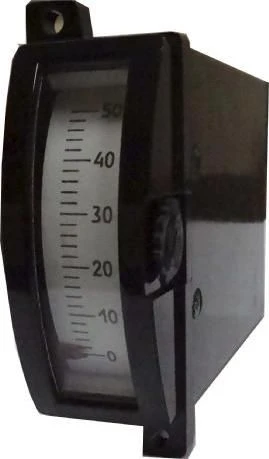

DC Current and Voltage Meters M42200 for Accurate Electrical Measurements

Panel Analog Measuring Instruments

Manufacturer: ELECTROPRIBOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Devices M42200 are designed to measure current and voltage in DC electrical circuits and are used in various industries. The devices are used in shields, mosaic panels and small-sized equipment. DC instruments can be manufactured with a zero mark at the edge or inside the measuring range.

Instrument scales can be made in any unit of measurement, with special marks, inscriptions, etc. according to the customer's data. The dials and scales of the instruments are made in accordance with GOST 5365.

Instruments can be manufactured for horizontal or vertical installation with the appropriate location of the instrument scale. Instruments with other measuring limits can be manufactured on request. The instruments are verified in accordance with the requirements of GOST 8.497-83.

M42200 are included in the State Register of Measuring Instruments of the Russian Federation No. 37622-17. Interverification interval is 2 years.

Specifications

Dimensions of the front panel, mm

100x32

Panel cutout, mm

80,5?28,5

Accuracy class

1,5 (except µA); 2,5

Degree of protection IP

Dustproof IP50

Weight, kg, not more

0,25

Measuring range (direct connection)

µA - 100; 150; 200; 250; 300; 400; 500; 600; 750; 1000; mA - 1; 5; 10; 15; 30; 50; 100; 150; 300; 500; 600; A - 1; 2; 3; 5; 10; V - 2; 3; 7,5; 10; 15; 30; 50; 75; 100; 150; 250; 300; 450; 500; 600

Measuring range (connection with 75 mV external shunt, 0.035 ohm pair of calibrated wires)

? - 20; 30; 50; 75; 100; 150; 200; 300; 500; 750; 1000; 1500; 2000; 3000; 4000; 6000

Measuring range (connection with 100 mV external shunt, 0.035 ohm pair of calibrated wires)

? - 7500; 10000; 12500; 15000

Measuring range (connection with external additive resistance with nominal current 5 mA)

? - 1000; 1500; 3000

Operating temperature range

-50...+60 °?

Scale length, mm, not less

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
